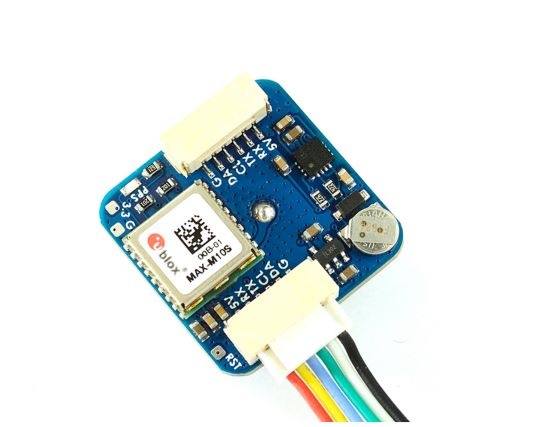

Matek Systems M10Q-5883 GPS Module with Compass for FPV Long Range
Specifications
- GNSS u-blox MAX-M10S (GPS, GLONASS, Galileo and BeiDou)
- Magnetic Compass QMC5883L
- Patch antenna 18*18*4mm
- Input voltage range: 4~9V (5V pad/pin)
- Power consumption: 13mA
- UART baudrate: 9600 default
- Operating Temperatures: -20~80 °C
- UART(TX, RX) interface for GNSS MAX-M10S
- I2C(DA, CL) interface for Compass QMC5883L
- JST-GH-6P connector (SM06B-GHS-TB)
- GNSS PPS LED, Green. (Solid ON after powering on M10-5883, blinking(1Hz) when GNSS get 3D fix)
- 23mm*23mm*10mm
- 9g
