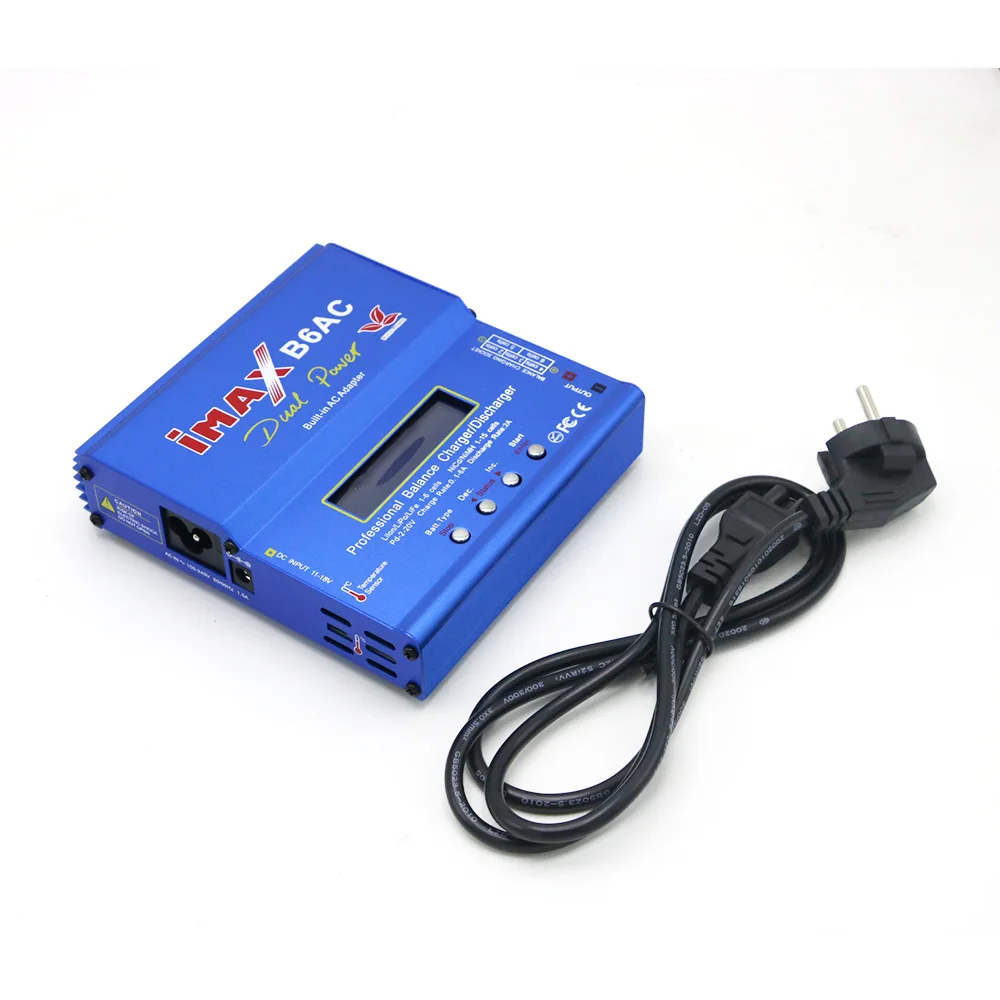

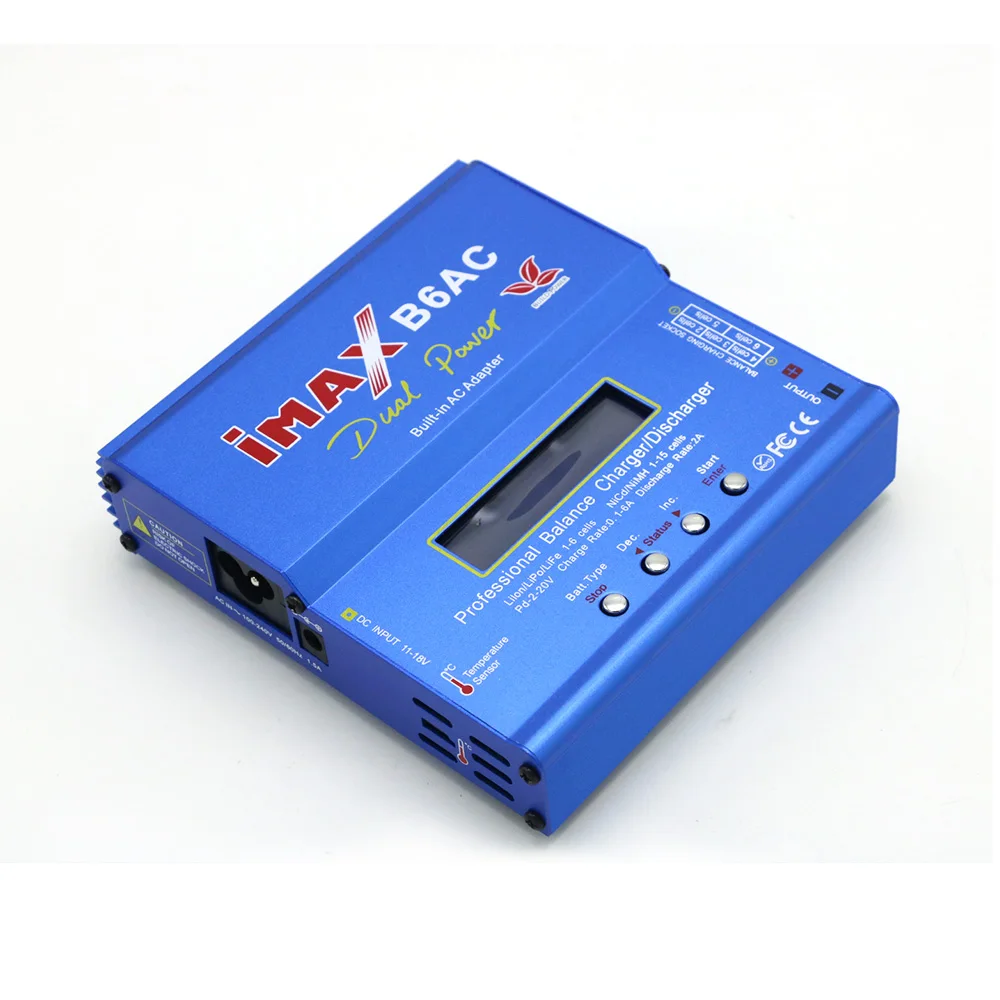

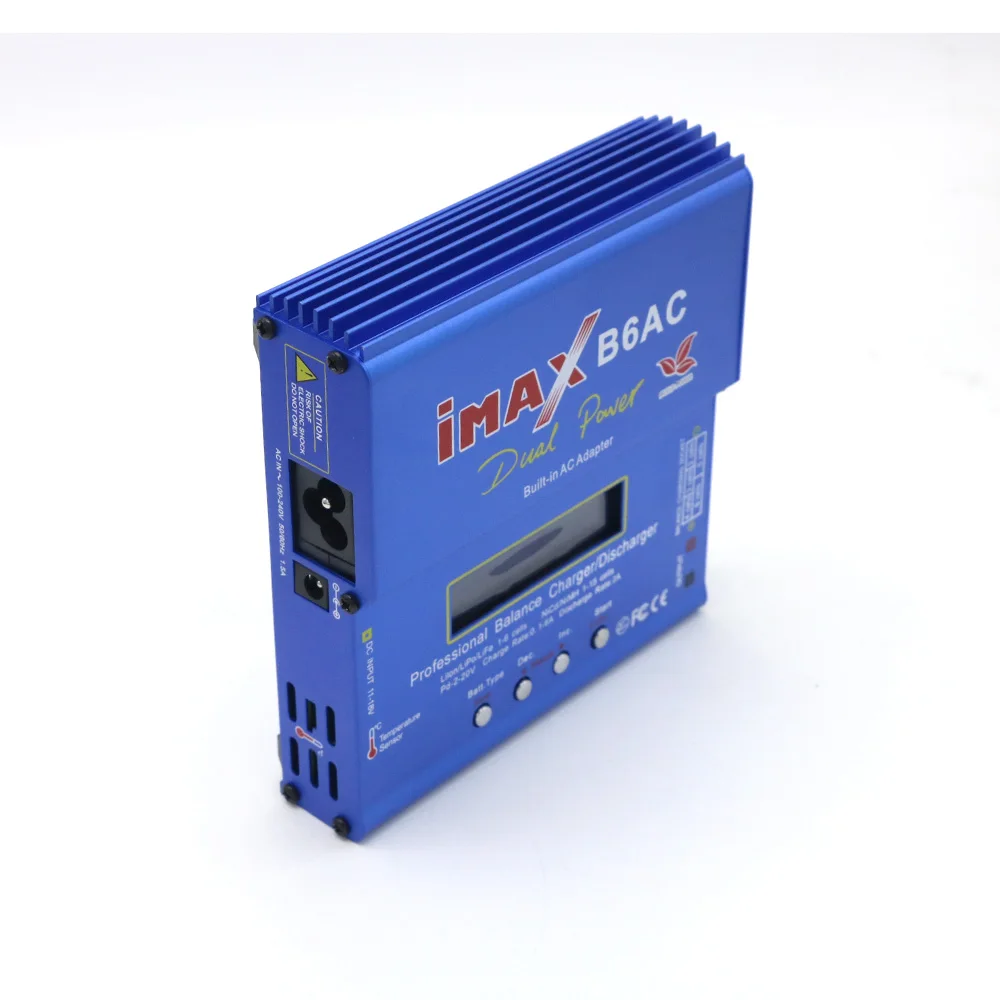

B6 AC Lipo Battery Balance Charger

This item is for a rapid charger/discharger for all kind of battery , with built in balancer for lipo battery. Battery that can be charged by this charger,Lipo / Li-ion / LiFe / NiMh / NiCad / Pb / Lead Acid

Feature:

1. High-power and high-performance circuit

2. Microprocessor controlled

3. Maximen safety: Delta-peak sensitivity, Capacity limit, processing time limit, tempreture limit, input power monitor

4. Monitoring the voltage of individual cell

5. Can charge Li-ion / LiPo / LiFe 1-6 cells, and Ni-Cd / NiMH 1 -15 cells

6. Dual Power, built-in AC adapter

7. UndefinedLarge range of charge currents

8. Store function, allows safe storage current, and data storage (Store up to 5 packs in memory)

9. Battery break in and cycling

10. Built-in temperature sensor

11. Separate voltage detector for balance charge mode.

Description:

Color: Bright blue

Oeration voltage range : DC 11.0 ~ 18.0 Volt or AC 100V ~ 240V 50/60Hz

Circuit power : AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)

Max. charge power 50W

Max. discharge power 5W

Charge current range : 0.1~5.0A

Discharge current range : 0.1~1.0A

Current drain for balancing Li-Po : 300mAh/cell

NiCd / NiMH battery cell count : 1~15 cell

Li-Ion / Polymer cell count : 1~6 series

Pb battery voltage : 2V~20V

Weight : 546g (Net Weight)

Dimensions : 136 x 141*34mm

Package weight: 778g

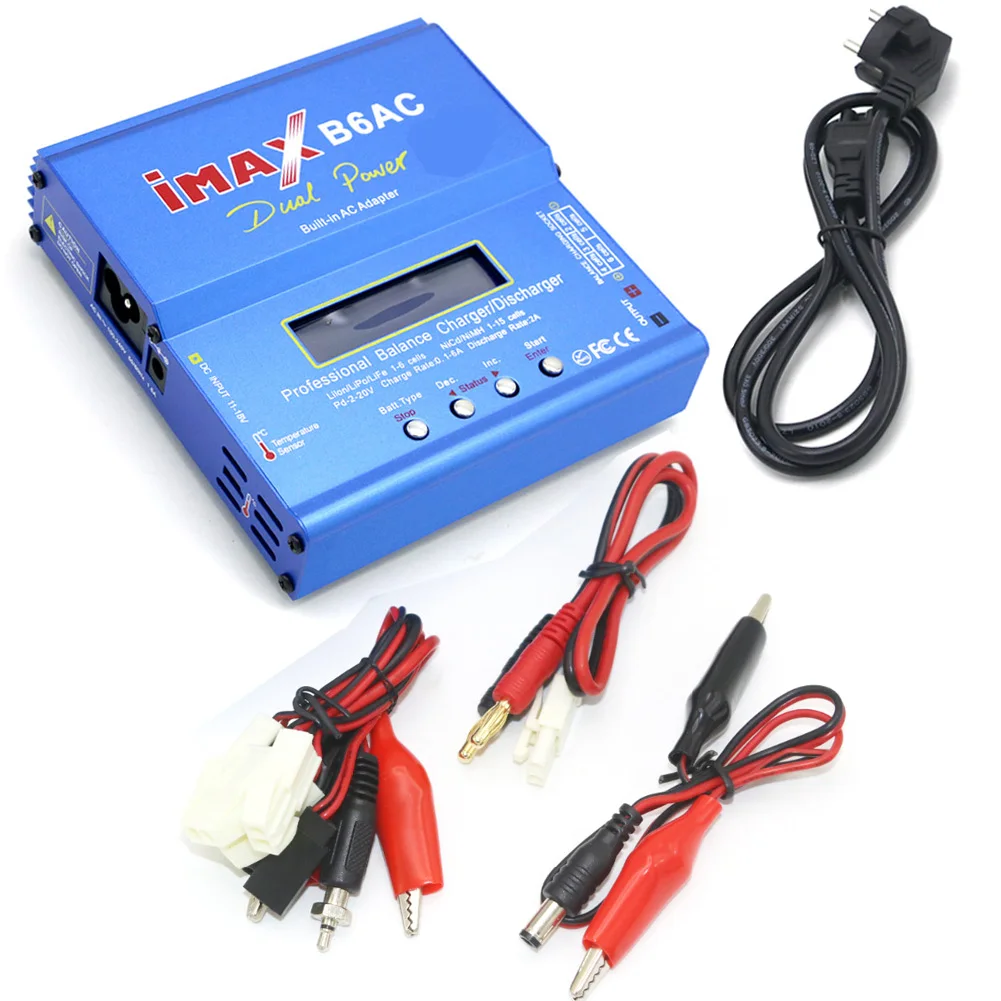

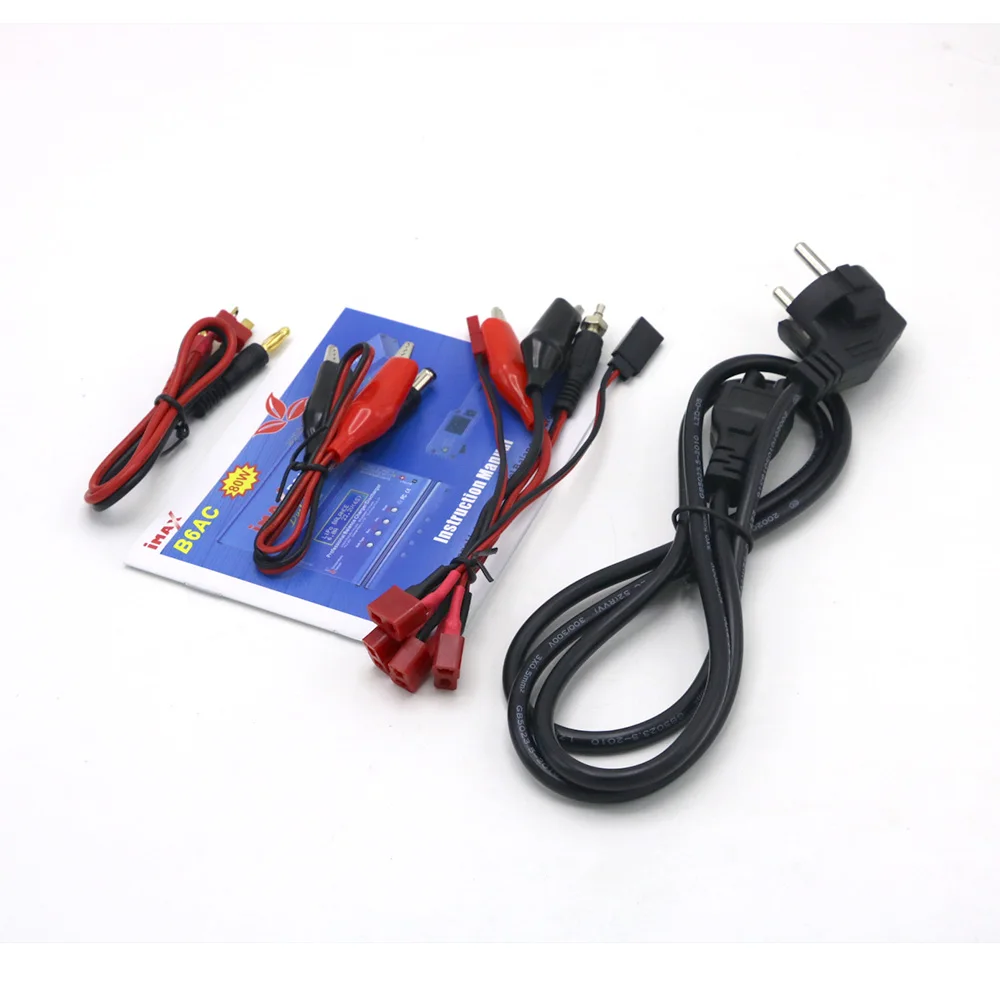

Package include:

1 x imax B6AC charger (80w )

1 x Multi-fuctional extension wire

1 x Universal crocodile clip

1 x JST plug

1 x Manual

1 x AC plug

Please note:

our machine can't support to  measure the 1s battery 's voltage andResistance

1.PROGRAM SELECT LIPO BATT : to charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries

2.USER SET PROGRAM: to set the parameter of charge batteries which you need .

3.PROGRAM SELECT NIMH BATT :to charge/discharge/cycle/nimh/nicd batteries

4.PROGRAM SELECT SAVE DATA : save setting data

5.PROGRAM SELECT PB BATT:to charge/discharge the pb (lead acid ）batteries .
