mechfpv Mark4 V3 Pro 15" 680mm Heavy Lift FPV Frame

Description:

Mark4 V3 Pro 15-Inch Long Range Frame Kit (680mm Wheelbase)

The MARK4 V3 Pro carbon fiber frame kit is designed for FPV freestyle quadcopters, offering a rigid and lightweight structure with 8mm arms, wide electronics compatibility, and support for large motors and propellers.

Specifications:

Product Name:MARK4 V3 Pro Carbon Fiber Drone Frame

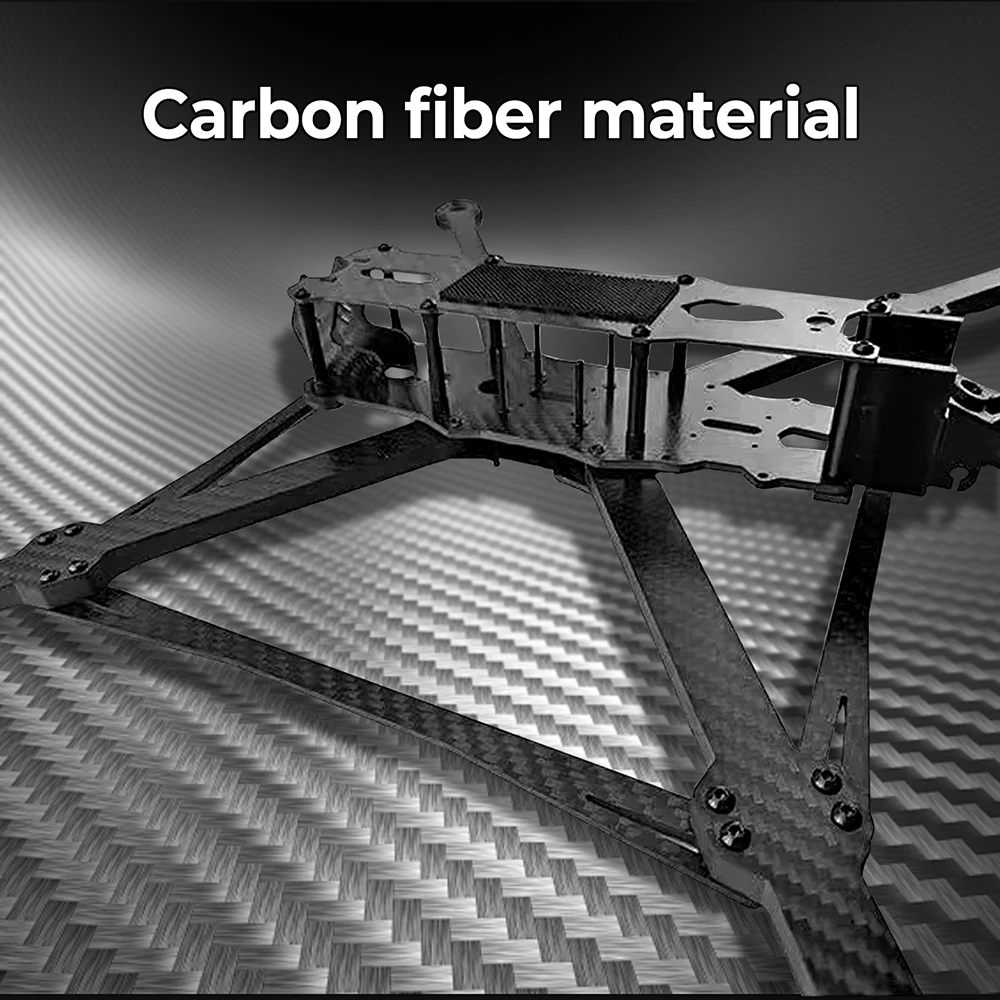

Material:Carbon Fiber

15 Inch Version

Wheelbase: 680mm

Weight: 590g

Prop Compatibility: 15 inch

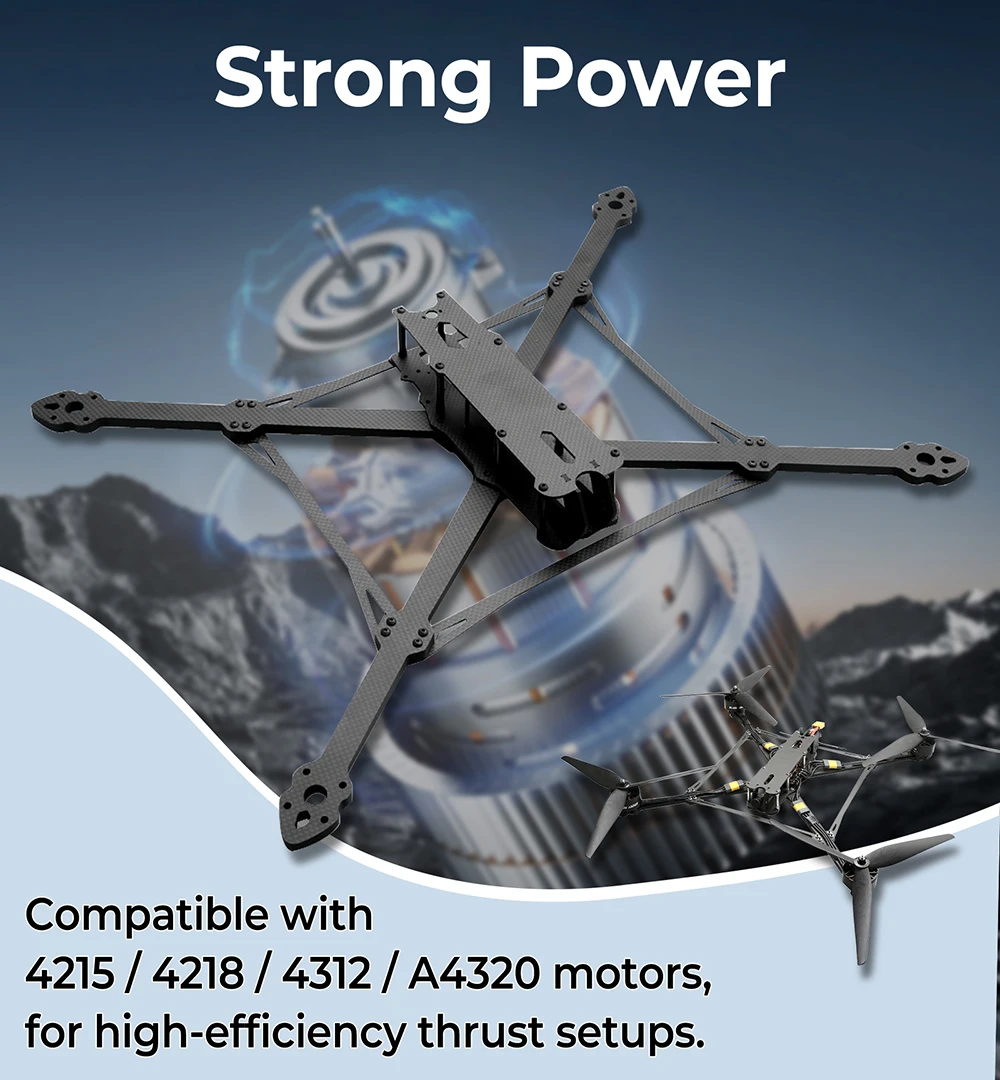

Motor Compatibility: 4218 / 4312 / A4320

Payload Capacity：8–10kg

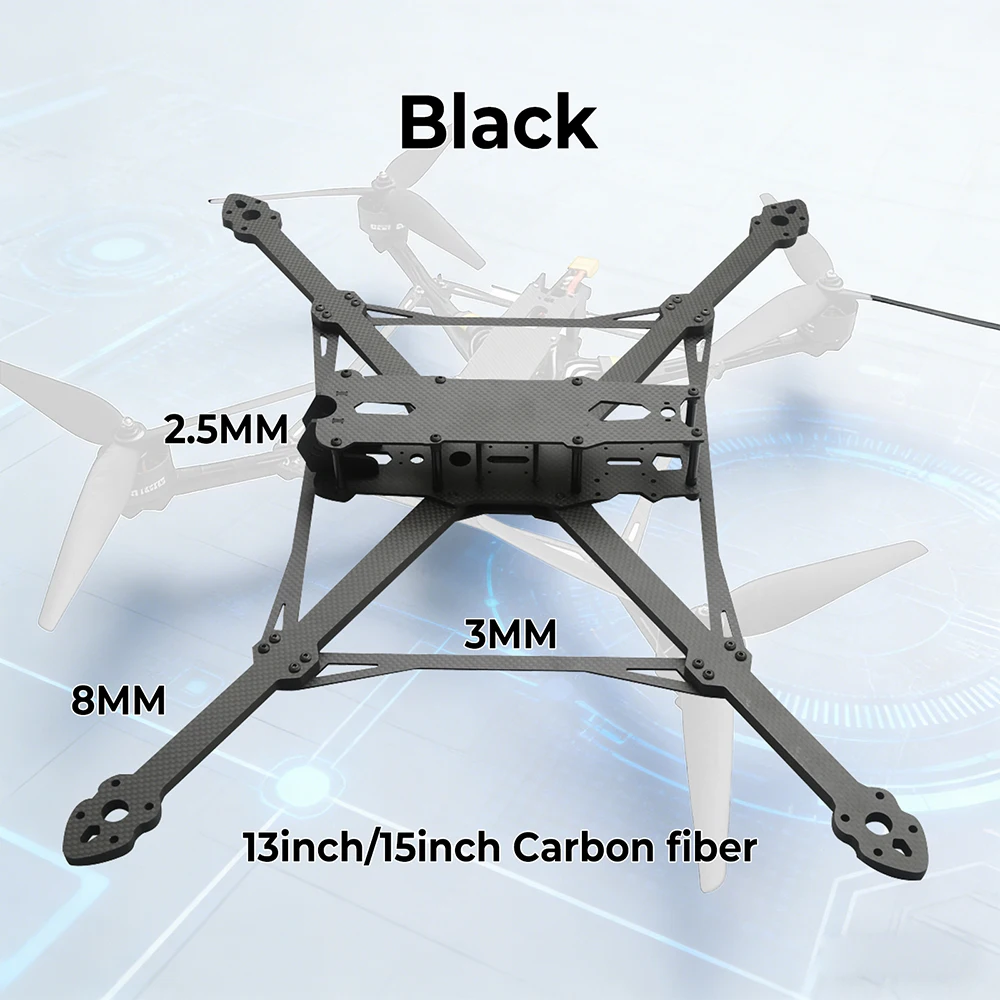

Structure Details

Upper Plate Thickness: 2.0mm

Bottom Plate Thickness: 3.0mm

Lower Fixed Plate Thickness: 3.0mm

Camera Side Plate Thickness: 2.5mm

Front Lip Plate Thickness: 2.5mm

Rear Lip Plate Thickness: 2.5mm

Surrounding Reinforcement Thickness: 3.0mm

Arm Thickness: 8.0mm

Mounting

Camera Mount Spacing: 19mm

FC Mount Spacing: 20×20mm / 30.5×30.5mm

VTX Mount Spacing: 20×20mm / 30.5×30.5mm

Motor Mount Spacing: 21×21mm

Motor Screw Hole Diameter: 4mm

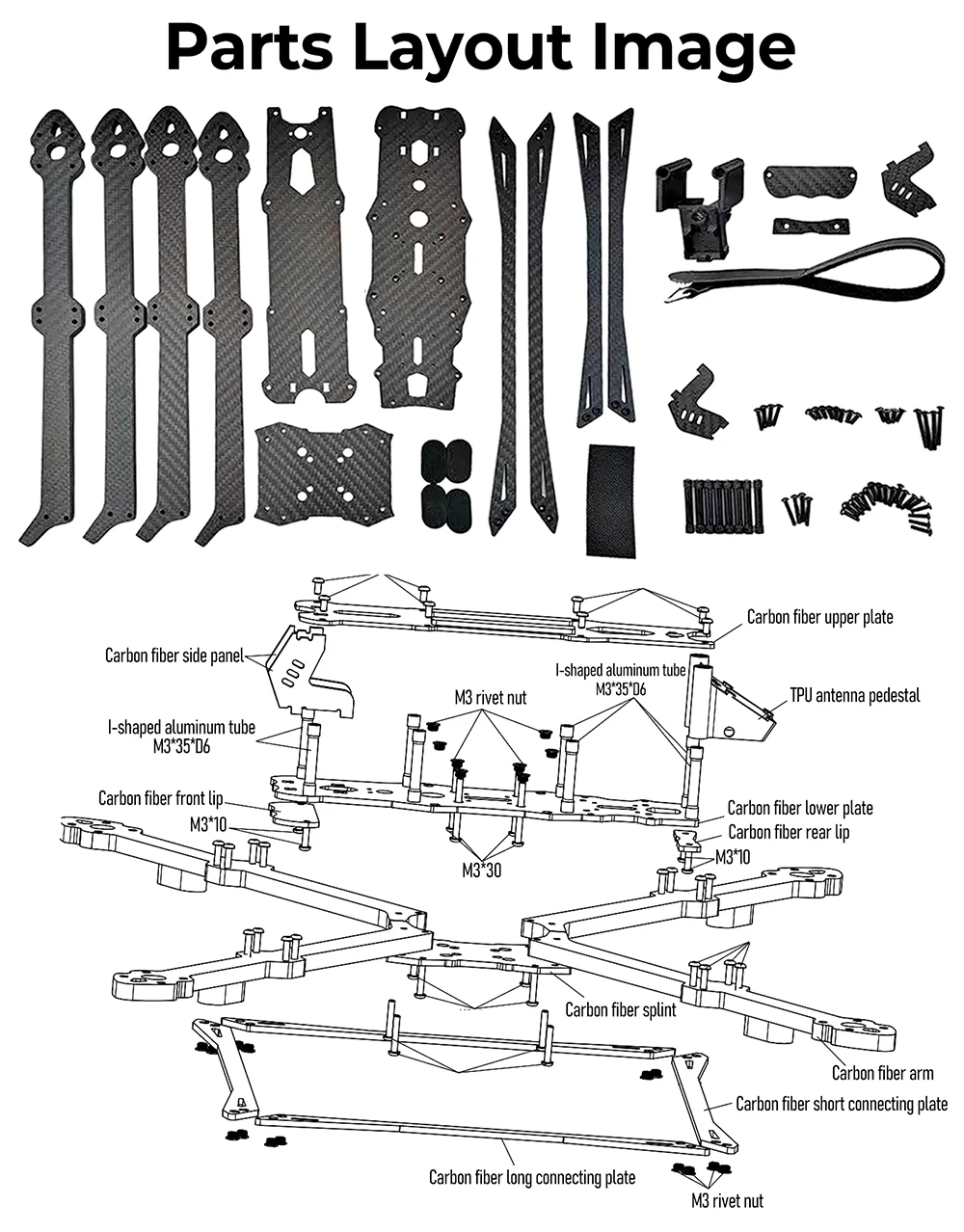

Package contents:

1*Carbon Fiber Frame
