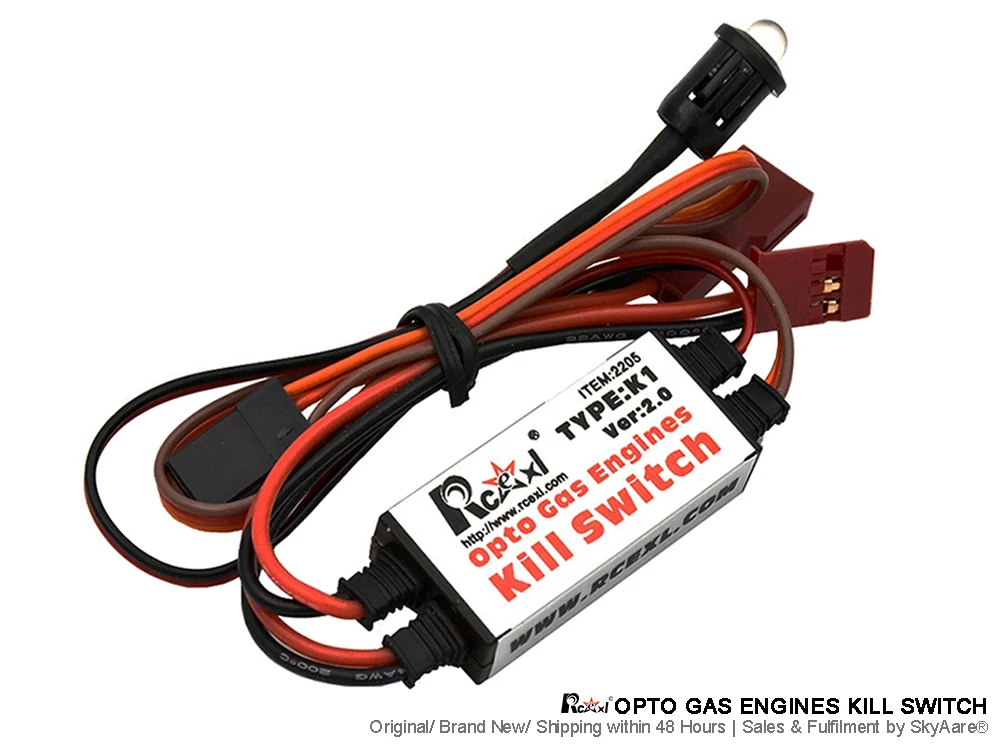

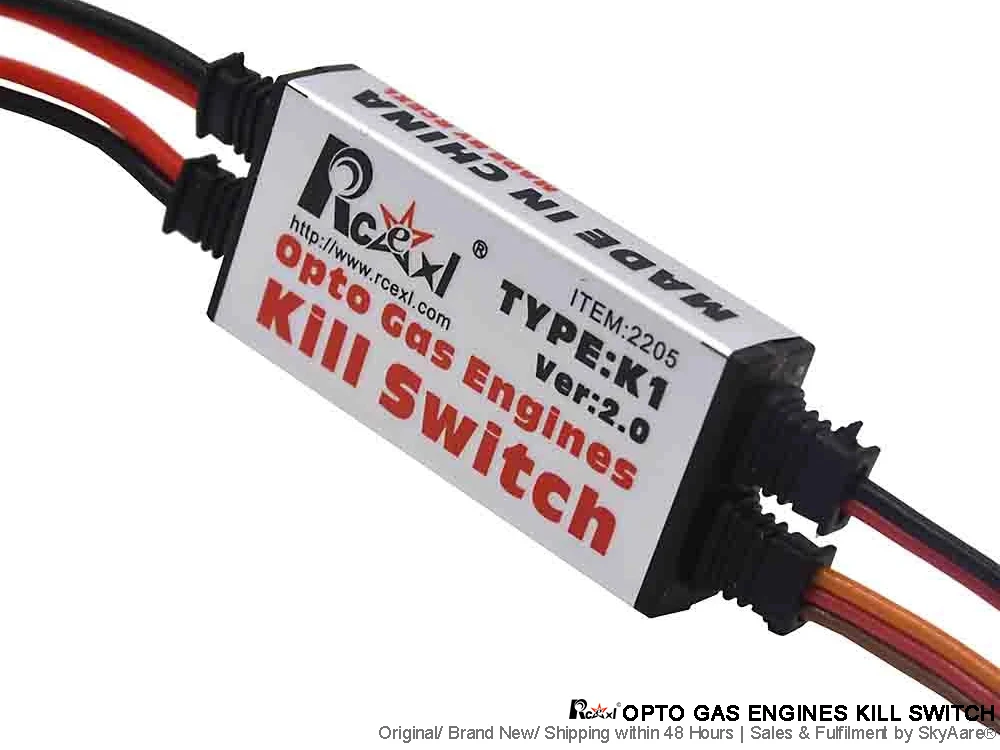

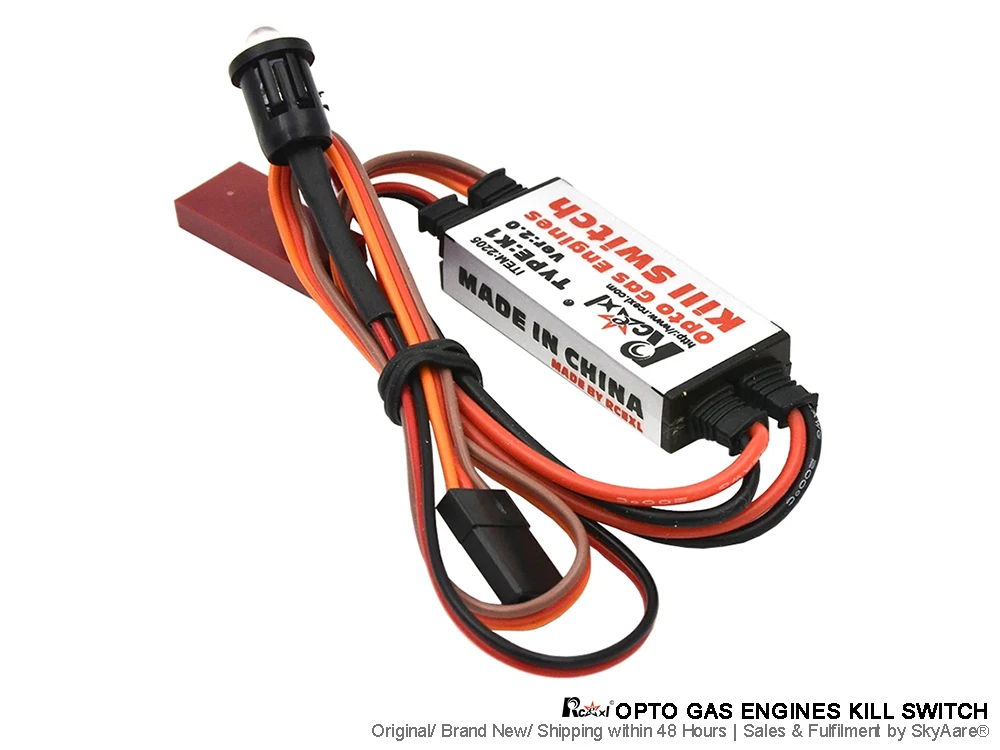

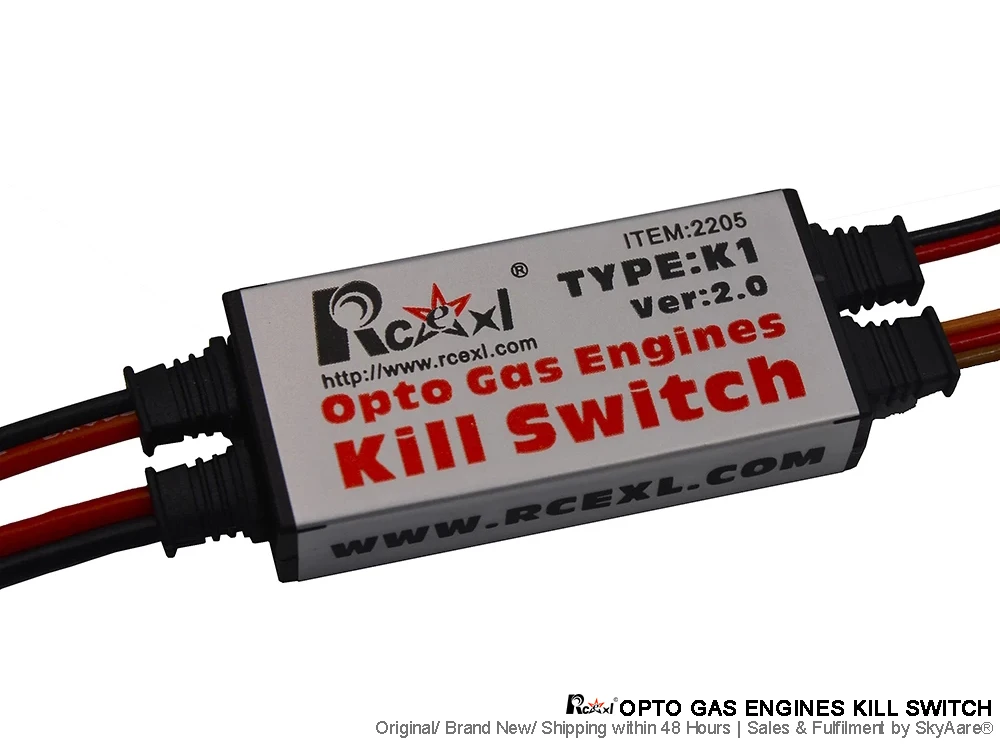

Rcexl Opto Gas Engine Kill Switch V2.0

Rcexl Opto Gas Engine Kill Switch V2.0

*Includes a remote mountable bright LED to indicate when the ignition is armed.

*Fiber Optic Coupled input/output.

*PIC12F675 Controller.

*Li-Po/Li-Lon/A123/Ni-Mh/NiCad Input.

*Up to 20 Volt 16 amp MOS-FET (IRF7456) output.

*Low to 3Volt 3amp output.

*Low Voltage Drop-Less than 150mv.

*100% Surface Mount Technology.

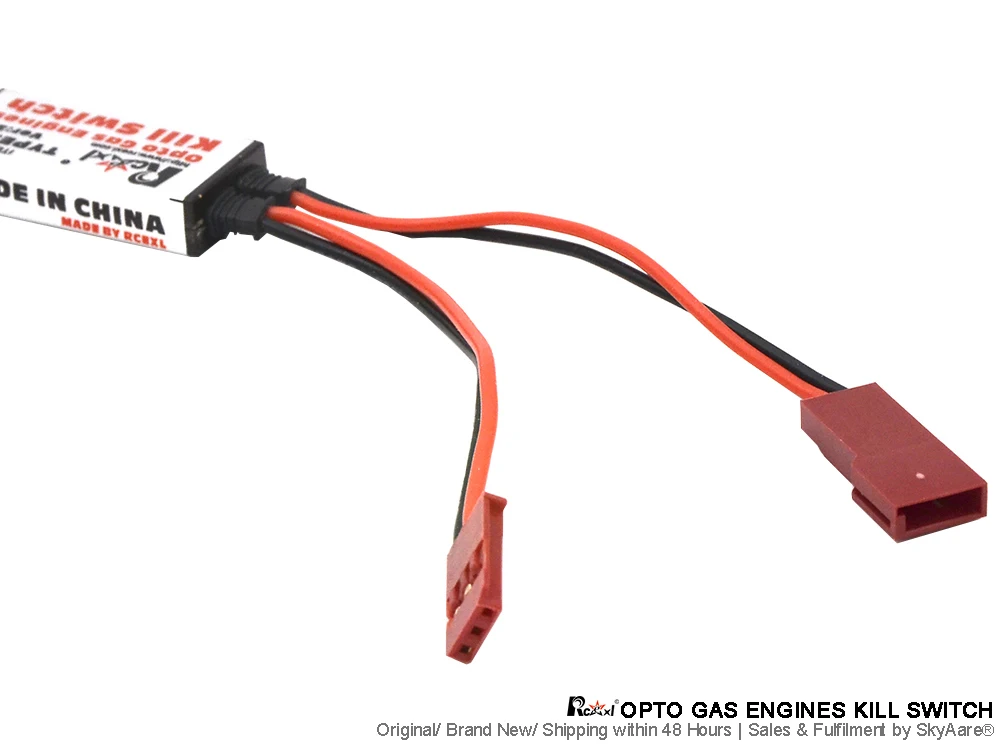

*Heavy Gauge Wires, universal connectors.

*Small and light weight –only 0.3 OZ! (8g)

*Reverse Battery input protection.

*Shut down the transmitter power or receiver to cut off automatically when kill engine.

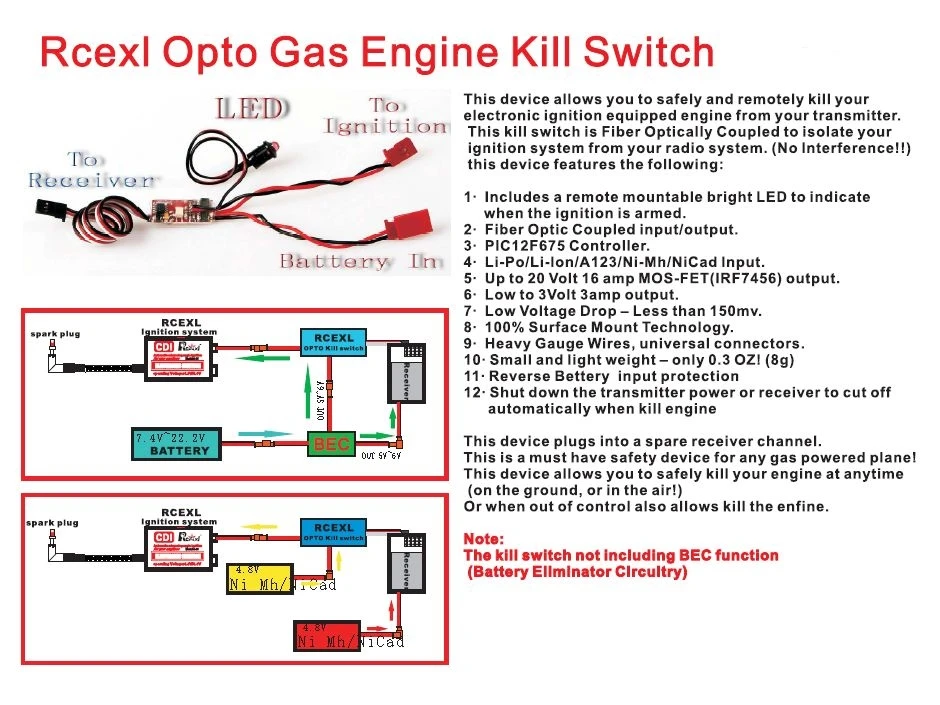

*This device plugs into a spare receiver channel.

*This is a must have safety device for any gas powered plane!

*This device allows you to safely kill your engine at anytime (on the ground, or in the air!), Or when out of control also allows kill the engine

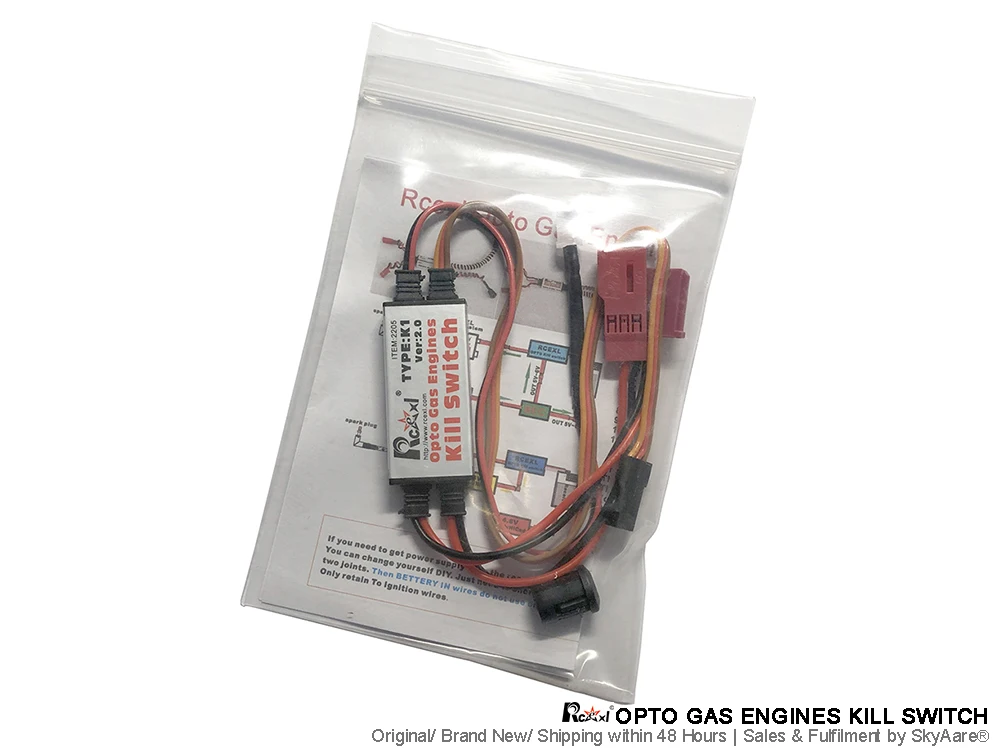

1 Piece of RCEXL Opto Gas Engine Kill Switch

Notice:

The kill switch not including BEC function.

(BEC: Battery Eliminator Circuitry)
