3 Channel Video Switcher Module

Product Name: 3 Channel Video Switcher Module 3 Way Video Switch Unit Fpv Camera For Multicopter Drones 5.8G Fpv Transmitter And Camera

Key Features:

• Multi-Camera Control: Connect and seamlessly switch between up to 3 video sources using a single PWM signal. Ideal for drones and aircraft with multiple camera setups.
• Stable & Jitter-Free: Built-in high-speed video switching chip effectively reduces image vibration and ensures smooth transmission.

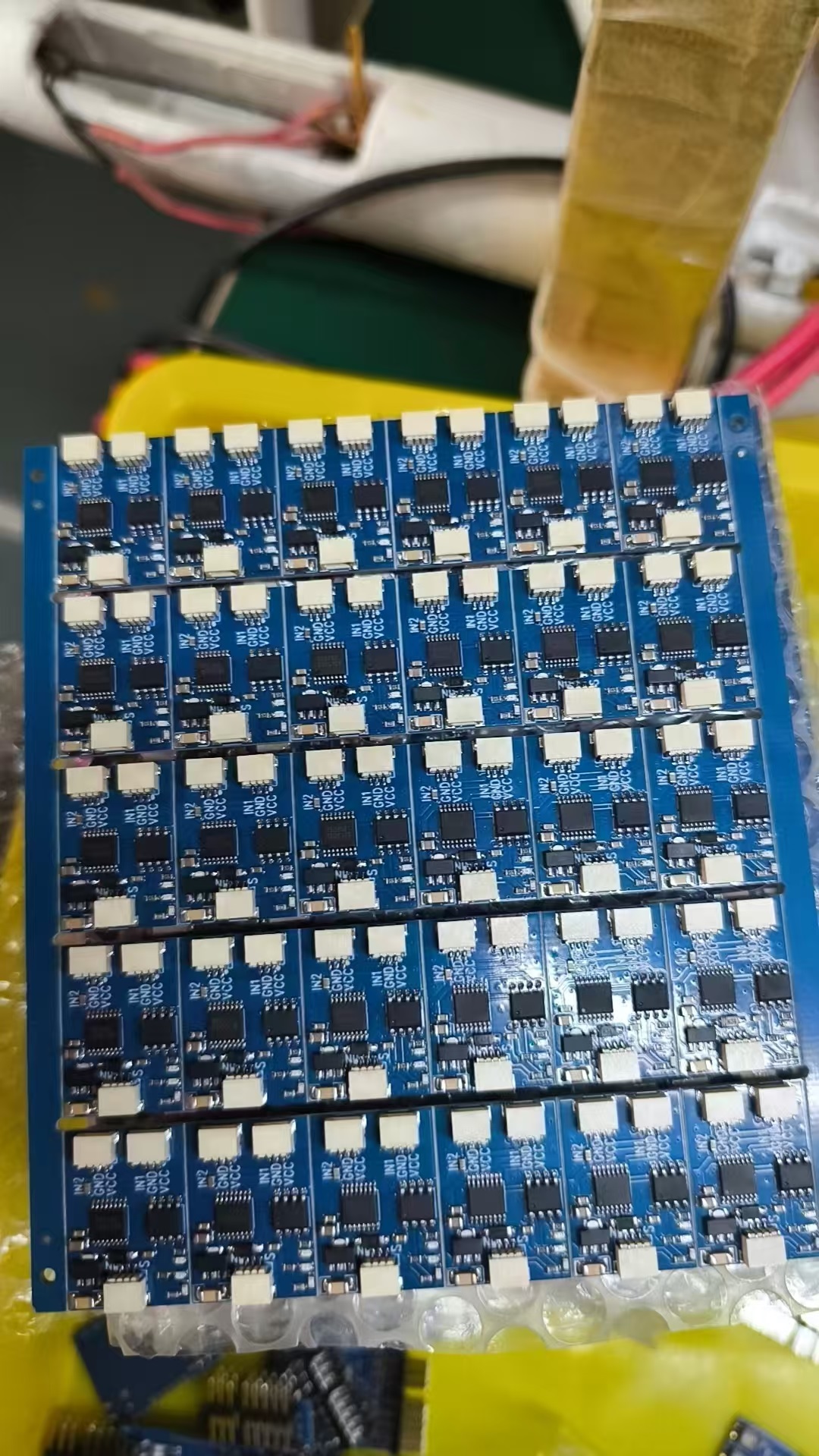

• Ready to Use: Features a high-quality PCB with pre-soldered pin headers. Compact, lightweight, and easy to integrate.
• Broad Compatibility: Supports a wide DC 5-12V power input for versatile applications.

Specifications:

• Input Channels: 3
• Operating Voltage: DC 5-12V
• Video Signal Impedance: 75Ω
• Control Signal: PWM (IN1: 1000us±200 | IN2: 1500us±200 | IN3: 2000us±200)
• Switch Requirement: A 3-position switch channel is required to access all 3 video sources. A 2-position switch will only switch between two inputs.

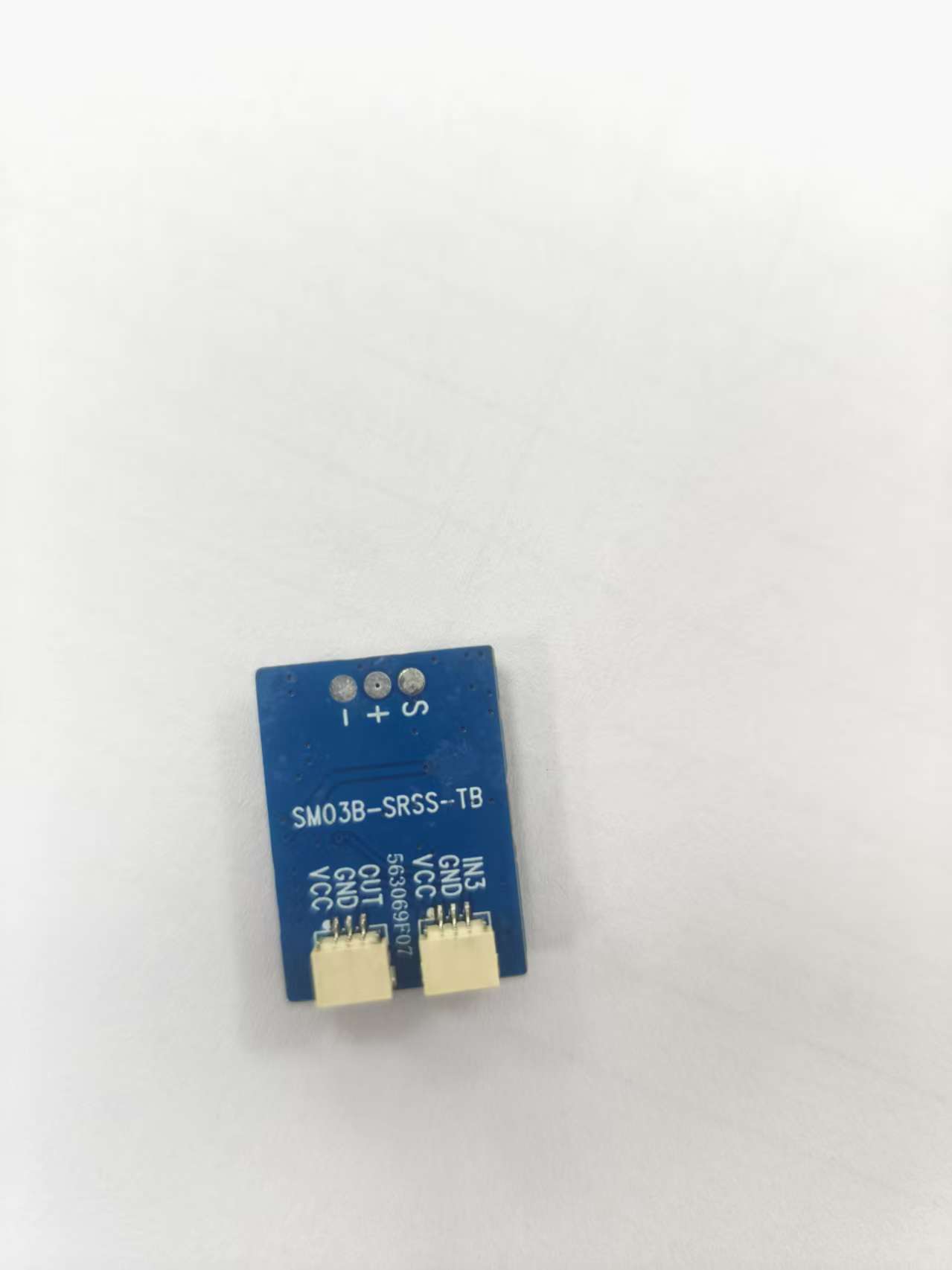

Pin Configuration:

• IN1, IN2, IN3: Video signal inputs
• OUT: Video signal output
• : Ground (Negative)
• : VCC (Positive Power)
• S : PWM Control Signal Receiver

Package Includes:

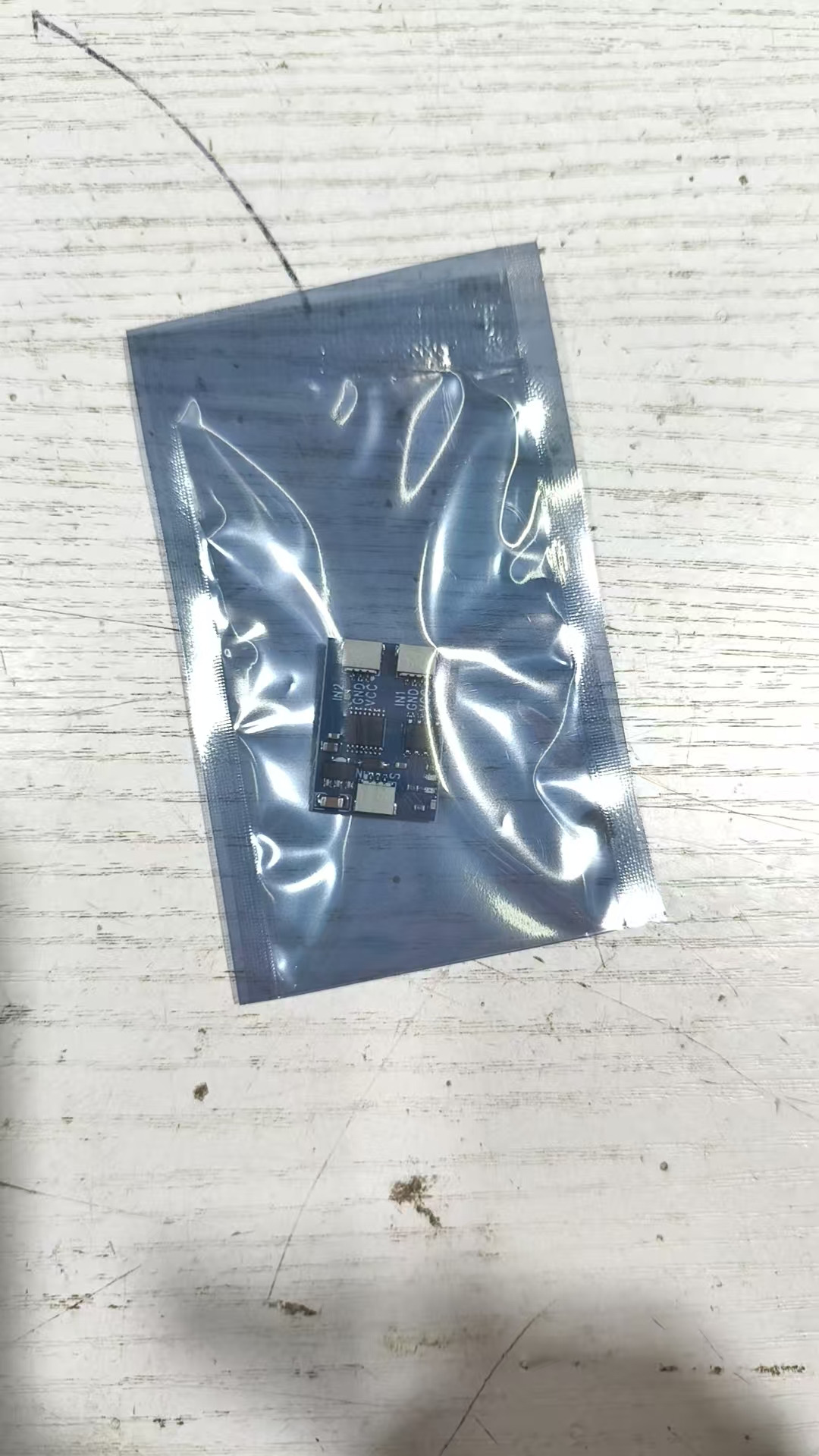

• 1x 3-Channel Video Switcher Module (Safely packaged in an anti-static bag)
