Matek Mateksys F405-WING-V2 FC

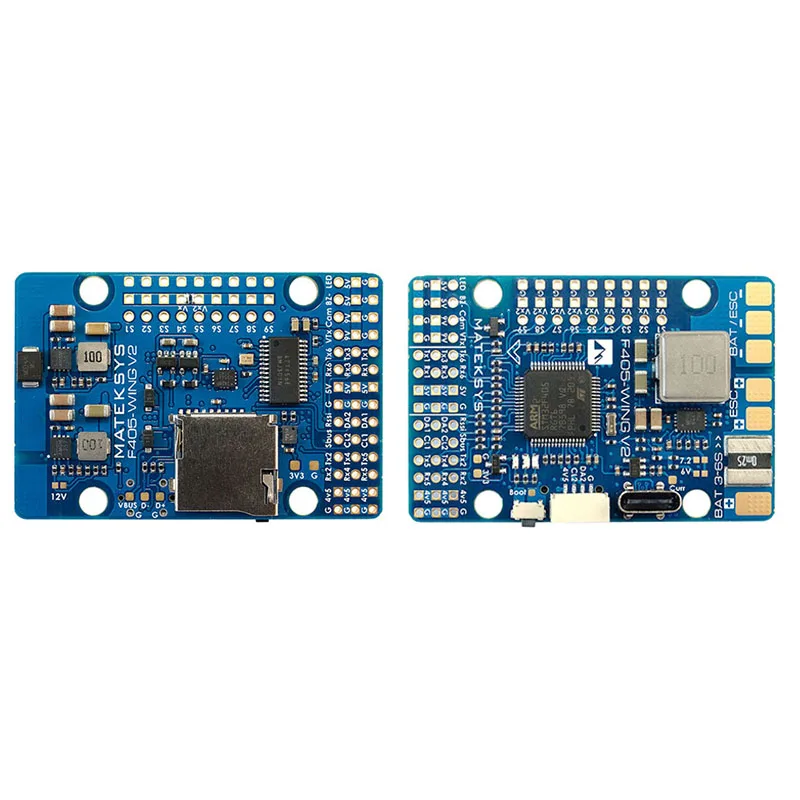

Matek Flight Controller F405-WING-V2

STM32F405RGT6, ICM42688P, DPS310, OSD, 6xUARTs, 10x PWM, 2xI2C, 3xBEC

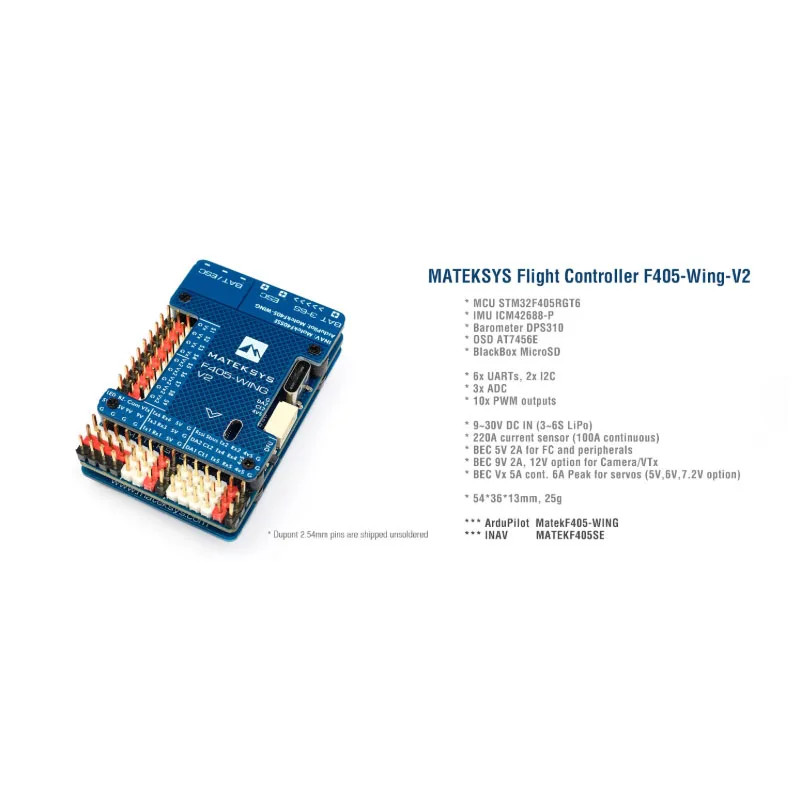

FC Specifications

* MCU: STM32F405RGT6, 168MHz , 1MB Flash

* IMU: ICM42688-P

* Baro: DPS310

* OSD: AT7456E

* Blackbox: MicroSD card slot

* 6x UARTs, 1x Softserial_Tx option(INAV)

* 10x PWM outputs

* 2x I2C

* 3x ADC (VBAT, Current, RSSI)

* Built in inverter for SBUS input

* USB Type-C(USB2.0)

FC Firmware

* ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)

* INAV: MATEKF405SE (INAV 6.0 or newer)

PDB

* Input voltage range: 9~30V (3~6S LiPo) w/TVS protection

* Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A/V)

* Sense resistor: 100A continuous, 220A peak

* Battery Voltage divider 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)

BEC 5V output

* Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed

* Continuous current: 2 Amps

BEC 9V /12V output

* Designed for Video Transmitter, Camera, Gimbal ect.

* Continuous current: 2 Amps

* 12V option with Jumper pad

* for stable 9V/12V output, input voltage should > output voltage +1V

BEC Vx output

* Designed for Servos

* Voltage adjustable, 5V Default, 6V or 7.2V options

* Continuous current: 5 Amps, 6A Peak

* for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output

* Designed for external 3.3V peripherals

* Linear Regulator

* Continuous current: 200mA

Physical

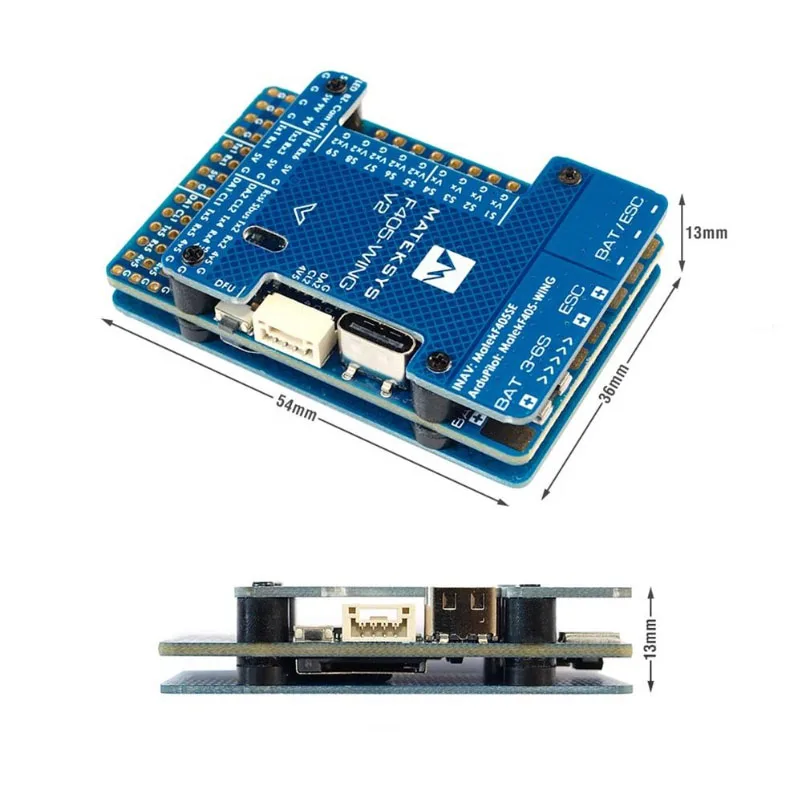

* Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

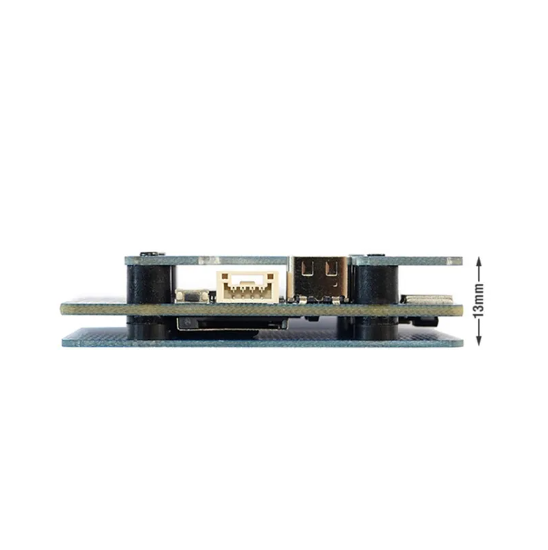

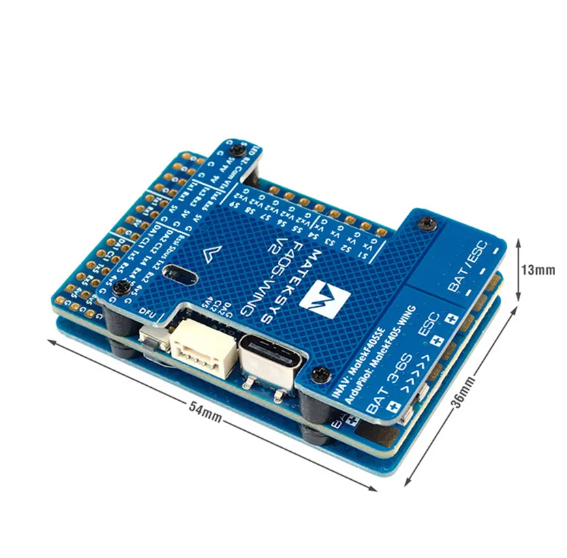

* Dimensions: 54 x 36 x 13 mm

* Weight: 25g

Including

* 1x F405-Wing-V2

* 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port

* Dupont 2.54 pins (Board is shipped unsoldered)
