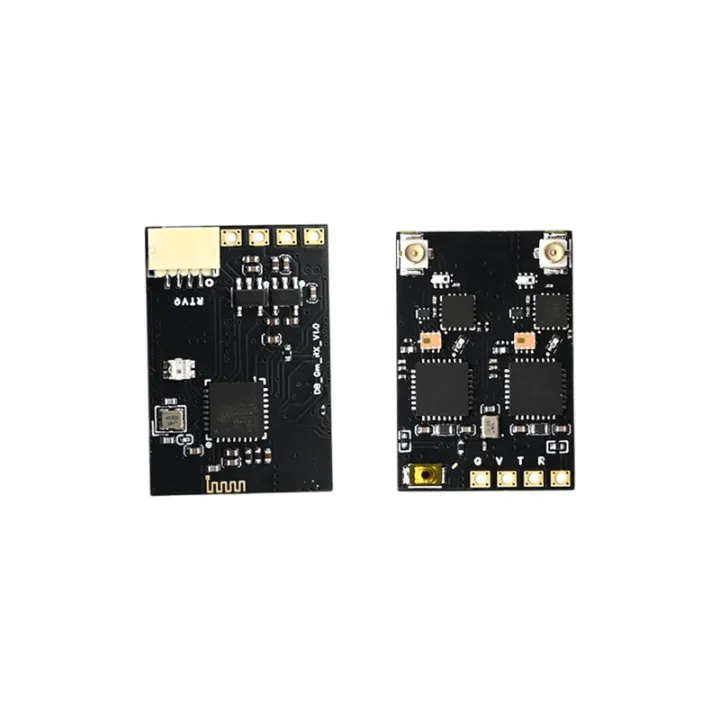

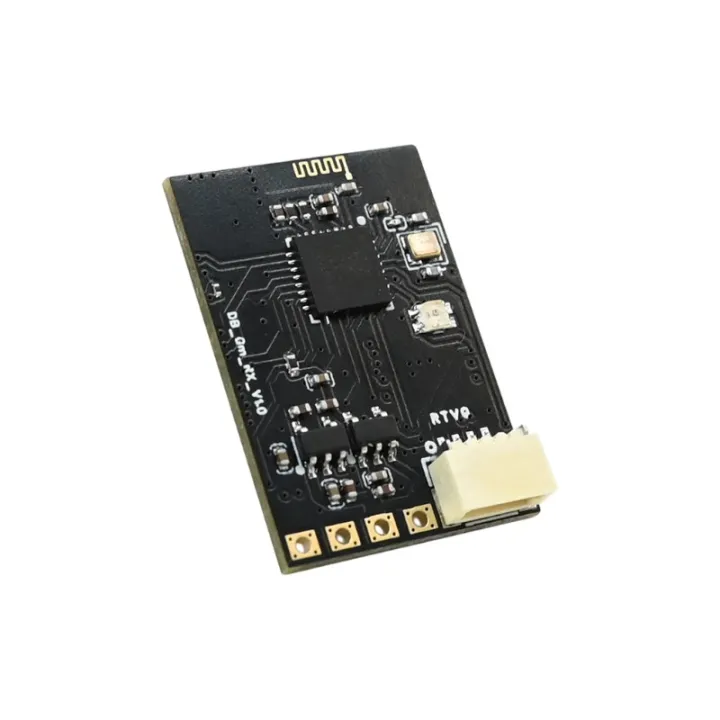

Mechfpv Super X dual ELRS Receiver
Specifications
Description
Product Specifications
Product Name:Super X double
Size: 17mm * 25mm * 1.17mm
Main Control Chip:ESP32-C3
RF chip:LR1121*2
Frequency Band:900M+2.4G
Backhaul Power:20dbm
Modulation Mode:LORA FSK
Crystal oscillator: temperature compensated crystal oscillator
Refresh rate: 25Hz-1000Hz
Working voltage: 5V
Antenna interface: IPEX1
Firmware: Alz Dual Band RX V2
Return power: 100mW
Working frequency band: 915MHz Gemini, 2.4GHz
Packing List
1x MECHFPV Receiver

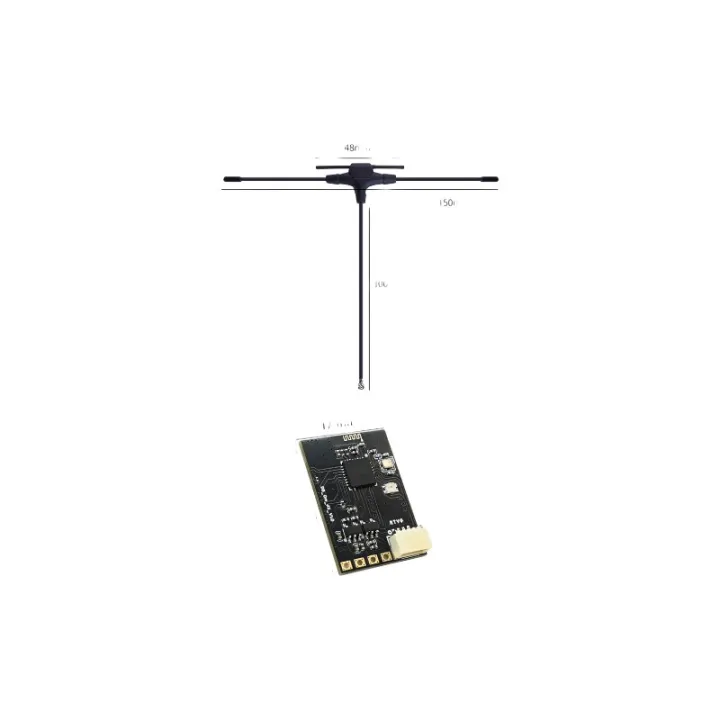

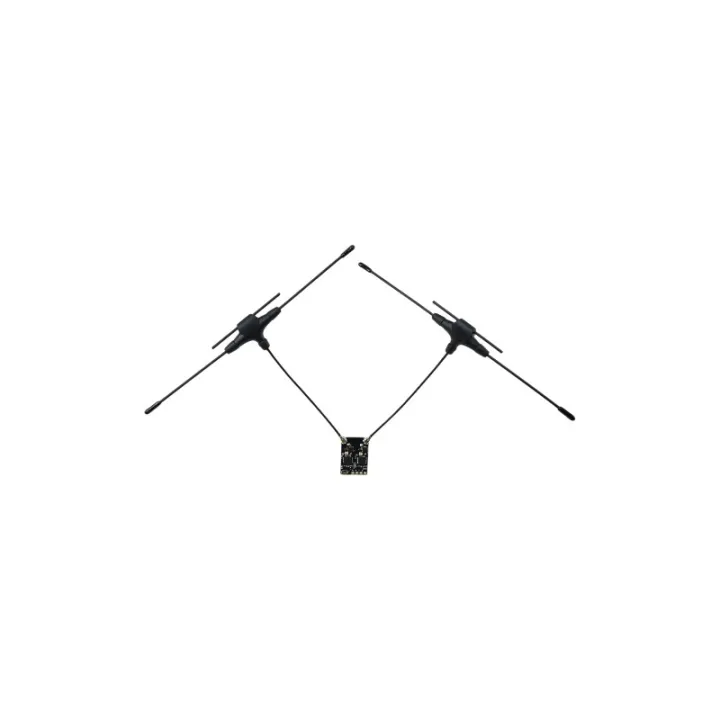

2x 915M/2.4G IPEX1 antenna
2x Heat shrink sleeve
4x Welding line
