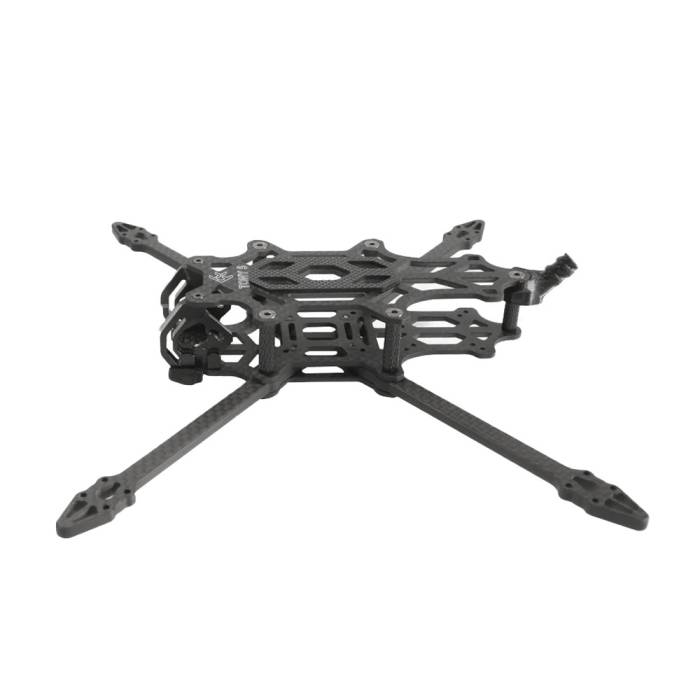

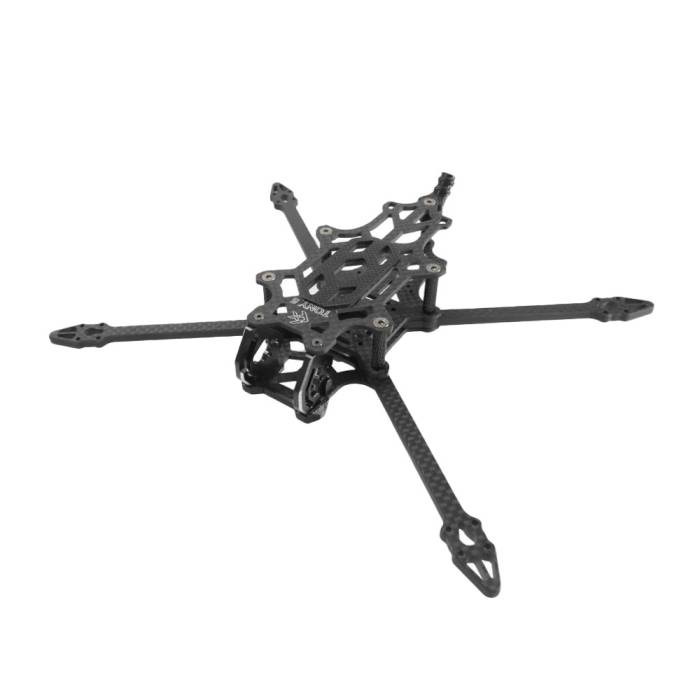

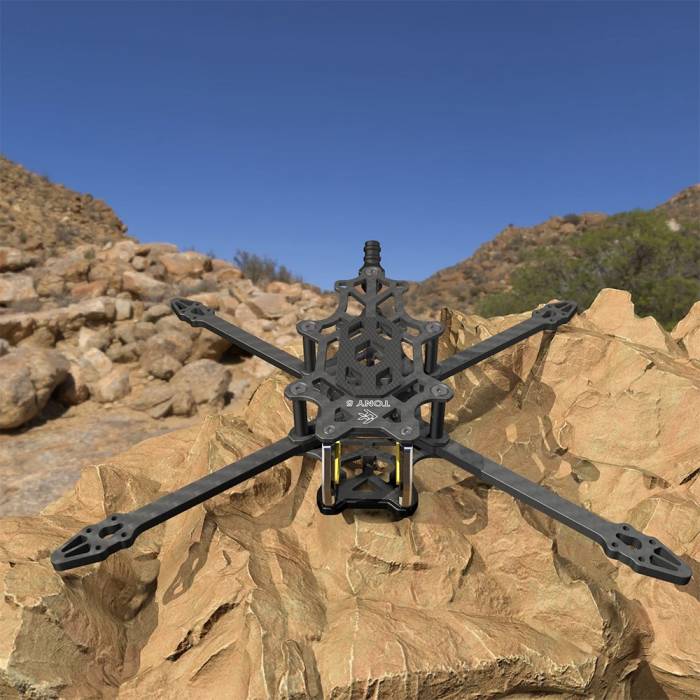

FlyFishRC Tony 5 O4 Pro Sub250 Freestyle Frame Kit
Specifications
About this product
The FlyFishRC Tony 5 is a lightweight, durable frame created to make building a sub-250g 5-inch drone a possibility. The straightforward and easy-to-build platform is fully O4-ready and equipped with CNC aluminum camera plates to ensure your valuable camera remains maximally protected during all types of crashes.
Features
- Only 57g (w/TPU)
- Sub-250g capable
- High-end T700 carbon fiber
- 12.9-grade strength hardware with Loctite threadlocker pre-applied

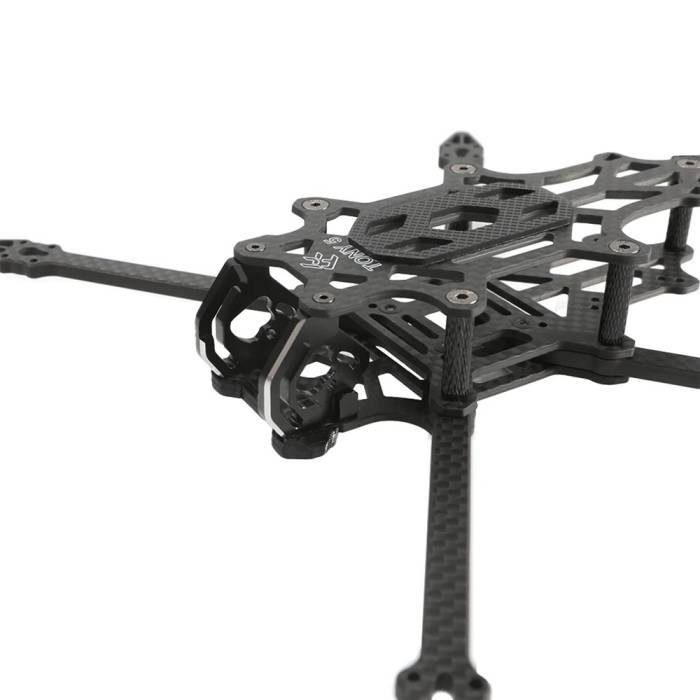

- CNC aluminum camera plates
- Silicone shock-absorbers for O4 AU
- Compatible with both 19/20mm cameras
- Compatible with most VTX
- Compact body, well-suited for freestyle
Specifications
- Model:Tony 5
- Geometry: True-X
- Wheelbase:215mm
- Arm thickness: 4mm
- Top plate thickness: 2mm
- Middle plate thickness: 2mm
- Bottom plate thickness: 2mm
- Propeller size: 5"
- CNC plate thickness: 4mm
- FPV cam spacing: 19mm/20mm
- Weight: 57g (with TPU parts)
- Total Dimensions:133.7mm*168*29mm
- Motor mounting hole:12mm*12mm(M2)
- Stack mounting holes: 20mm*20mm/25.5mm*25.5.5mm(M3)
- VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
- Motor mounting holes:12*12mm(φ2mm)
Links
Includes
- 1x FlyFishRC Tony 5 O4 Pro Sub250 Freestyle Frame Kit
