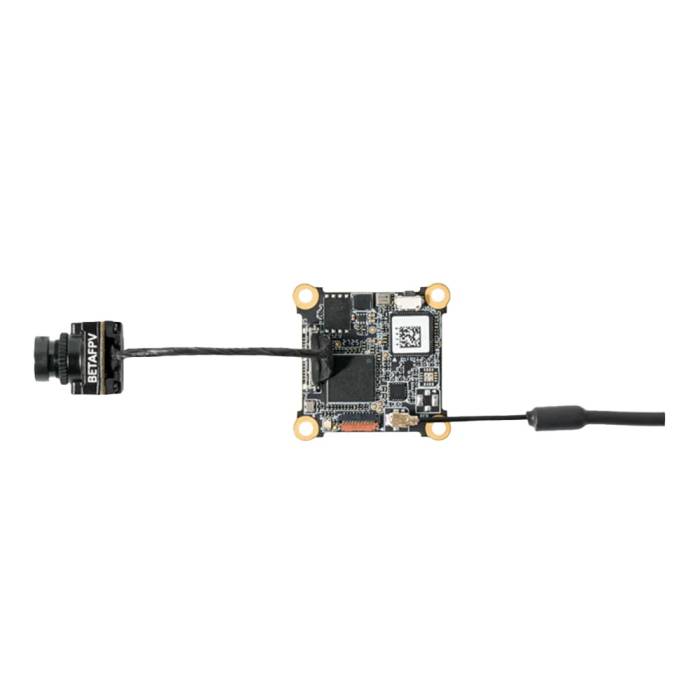

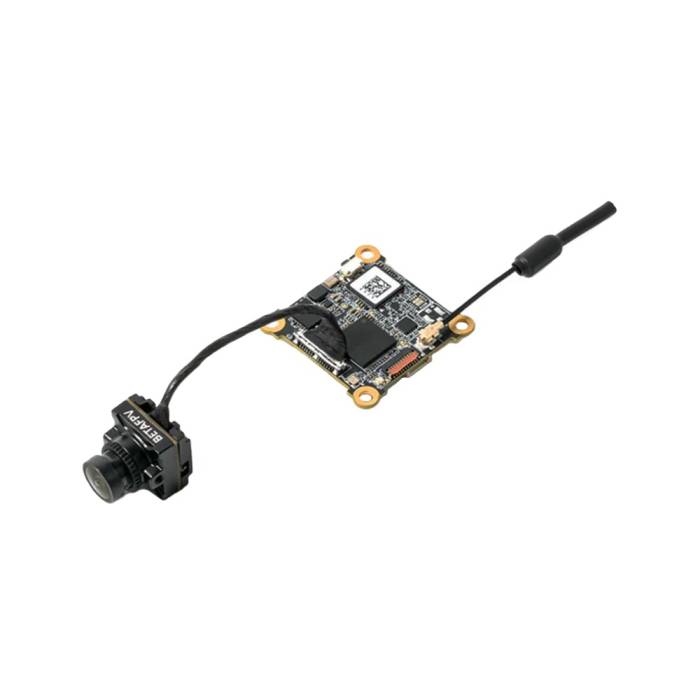

BETAFPV P1 Air Unit HD VTX

About this product

The BETAFPV P1 Air Unit HD VTX delivers a stunning 1080p@60fps live feed with approximately 60ms latency and an impressive transmission range of over 5km. Its 1/2.9” CMOS sensor and wide 170° field of view provide an incredibly immersive and detailed perspective, making every flight intuitive and responsive. Designed for reliability in diverse conditions, the system maintains a stable, interference-resistant connection, whether weaving through dense forests or navigating complex urban environments.

Features

• ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
• Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution.
• Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range.
• Wide‑Angle 1080p Clarity: 1/2.9” CMOS sensor and 170° FOV for a crisp, immersive live view.
• Plug‑and‑Play Compatibility: Standard 6‑pin port works seamlessly with Betaflight and BETAFPV flight controllers.

Specifications

AIR UNIT

• Weight:
• Air Unit (Camera excluded): Approx. 3.61g
• Air Unit (Camera included): Approx. 6.5g
• Antenna: Approx. 0.44g
• Mounting Pattern: 25.5 x 25.5mm
• Mounting Hole Diameter: 2.5mm
• Dimensions (L x W x H):
• Air Unit: 30 x 30 x 5.5mm
• Camera: 14 x 14 x 17mm
• Ports:
• SH 1.0 6-pin (FC)
• SH 1.0 4-pin (USB)

VTX

• Frequency: 5.1-5.9 GHz
• Effective Isotropic Radiated Power (EIRP):
• ＜200mW (FCC/SRRC)
• <25mW (CE)
• Video Transmission Range: >5km
• Video Transmission Latency: Approx. 60ms
• Live View Quality: 1080p@60fps
• Bandwidth: 10MHz
• Antenna: Single antenna
• Channels: 3

CAMERA

• Mounting Width: 14mm
• Mounting Hole: M2
• Image Sensor: 1/2.9'' CMOS
• Field of View (FOV): 170°
• Video Format: MP4
• Max Video Transmission Bitrate: 20Mbps
• OSD: Canvas mode

FIRMWARE

• Input Voltage: 5V
• Operating Temperature: -10℃ to 40℃

COMPATIBILITY

• Supported FC: Betaflight FC & BETAFPV FC

Links

• User Manual for P1 Air Unit
• Firmware for P1 Air Unit

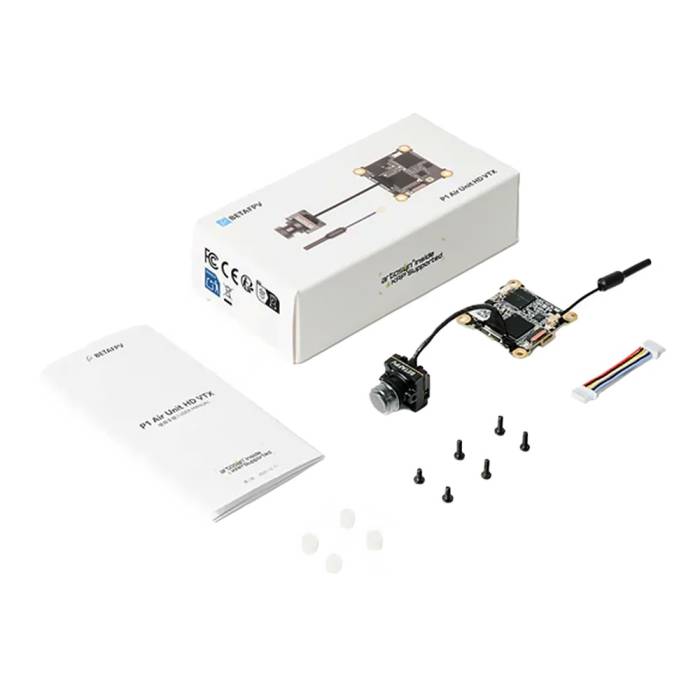

Includes

• 1x P1 Air Unit HD VTX
• 1x 6Pin Cable
• 1x Accessories Package
• 4x Shock-absorbing Balls
• 2x M2-4 Screws
• 4x M2-6 Screws
• 1x User Manual
