Pixhawk 2.4.8 Full Combo - M8N GPS + 3DR Telemetry + OSD + PM + I2C

PIXHAWK 2.4.8 32-Bit ARM Flight Controller System

Complete Pixhawk 2.4.8 PX4 Flight Controller Kit with M8N GPS & Telemetry

PIXHAWK integrates the latest 32-bit chip technology and sensor technology, eliminating the limitations of APM's 8-bit CPU and the issues of high CPU occupancy. Featuring a real-time operating system and 14 PWM/Servo outputs, it provides a powerful and reliable platform for your aircraft.

Key Features

• High Performance: Upgraded from 8-bit to 32-bit processing for complex flight calculations.
• Real-Time OS: Built on a real-time operating system for low-latency response.
• Redundancy & Safety: Integrated backup power and failover controller. In case of main controller failure, it safely transitions to the backup system.
• Flight Modes: Supports both automatic and manual flight modes.
• Power Failover: Redundant power supply input with automatic failover capabilities.
• Visual & Audio Feedback: Multi-color LED indicator and multi-sound buzzer interface.
• Data Logging: Micro SD card slot for comprehensive flight data recording.

Hardware Parameters

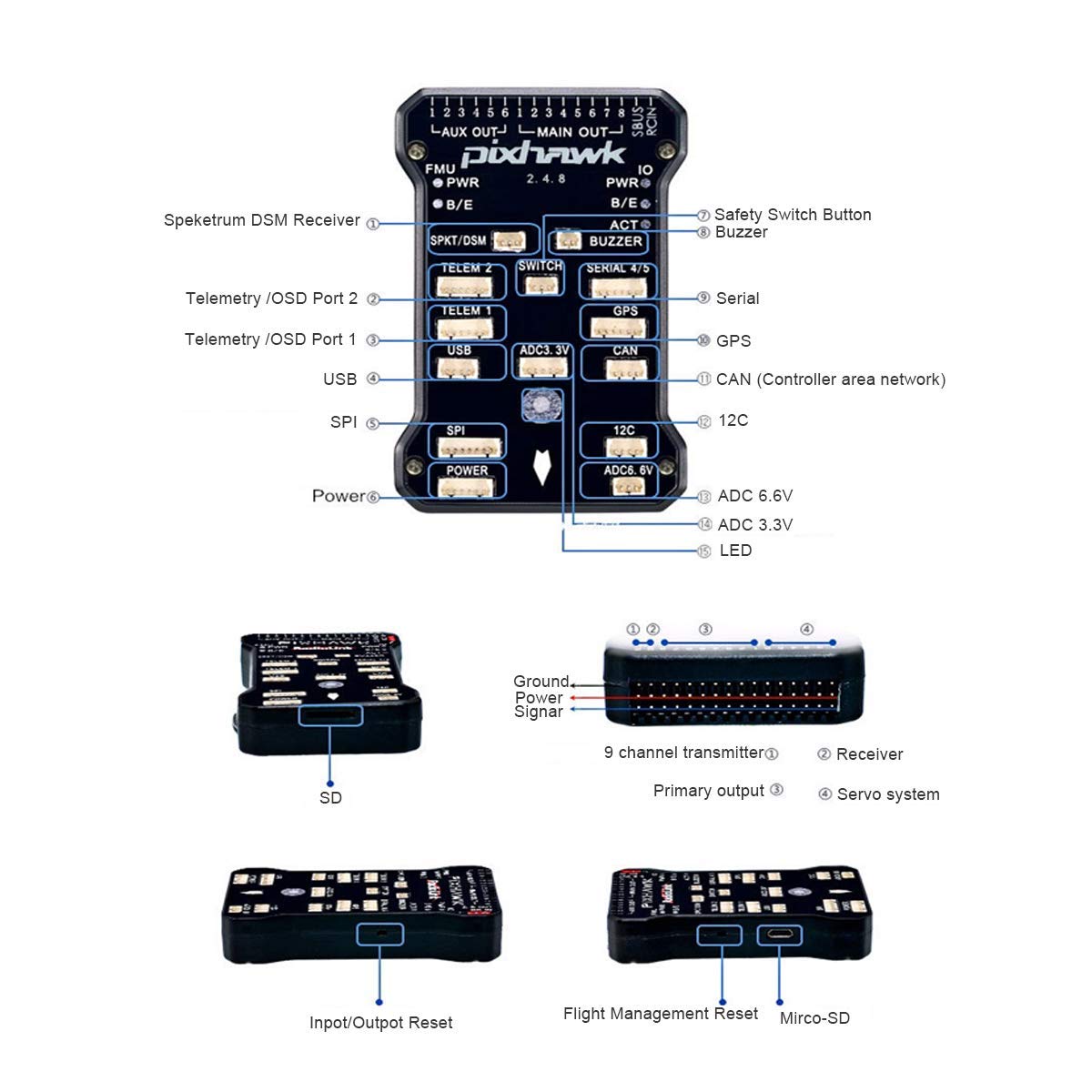

ComponentSpecificationsMain Processor32-bit STM32F427 Cortex M4 (2M Flash, Hardware Floating Point)Main Frequency168MHz / 256K RAMBackup Processor32-bit STM32F103 backup processorGyroscopeL3GD20 3-axis digital 16-bit gyroscopeAcc/MagnetometerLSM303D 3-axis 14-bit acceleration/magnetometerSensor HubMPU6000 6-axis acceleration/magnetometerInterface Specifications

• UART: 5 ports (1 compatible with high voltage, 2 with hardware flow control)
• CAN: Dual CAN interfaces
• RC Compatibility: Spektrum DSM/DSM2/DSM-X satellite receiver & Futaba SBUS input/output
• Signal Input: PPM signal input and RSSI (PWM or voltage) output
• Expansion: I2C, SPI, 3.3V and 6.6V ADC inputs
• Connectivity: External Micro USB interface and 14 PWM/Servo output bus

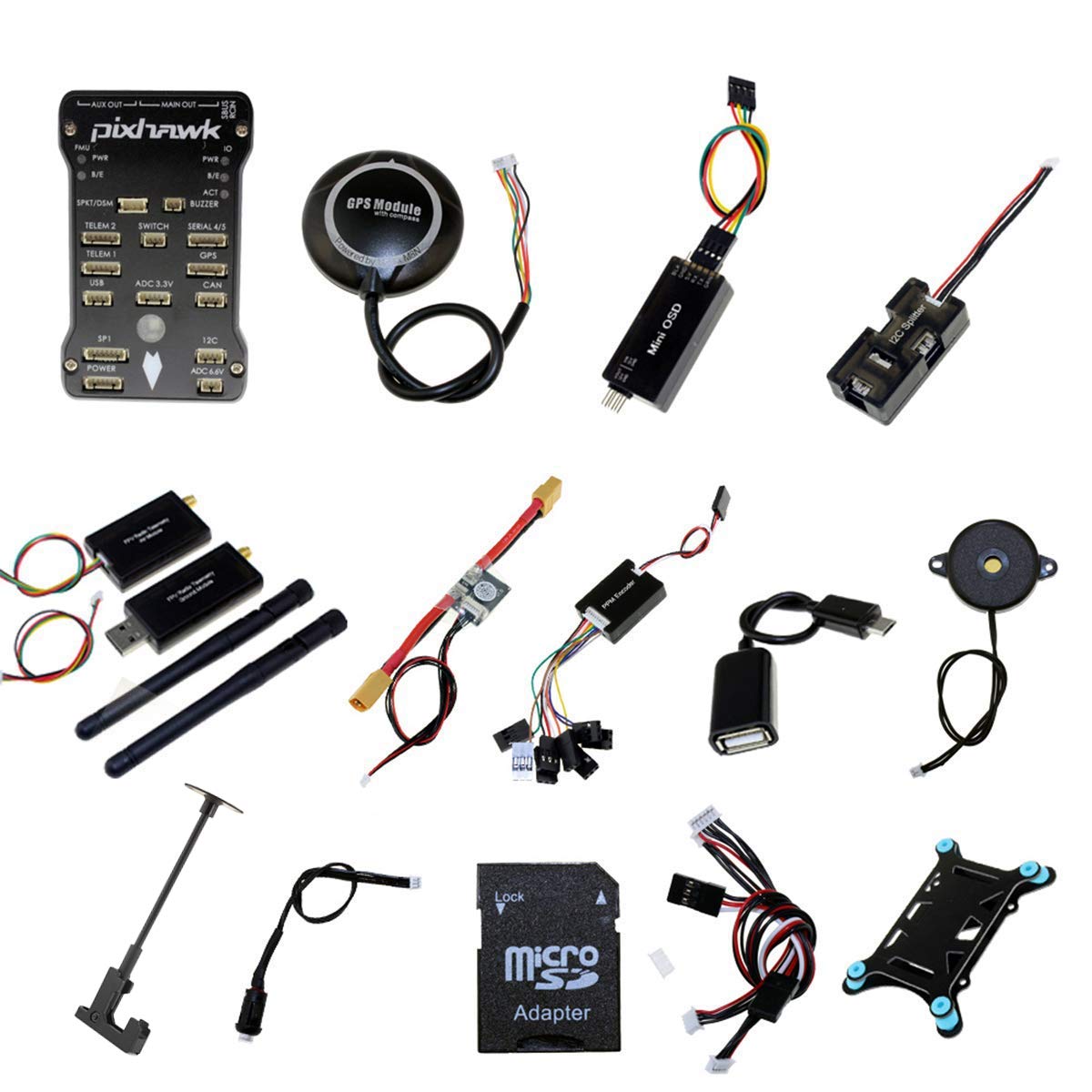

Package Included (As shown in main picture)

• 1 x Pixhawk PX4 2.4.8 32-bit ARM Flight Controller (with shell)
• 1 x Safety Button
• 1 x Shock Absorber for Pixhawk board

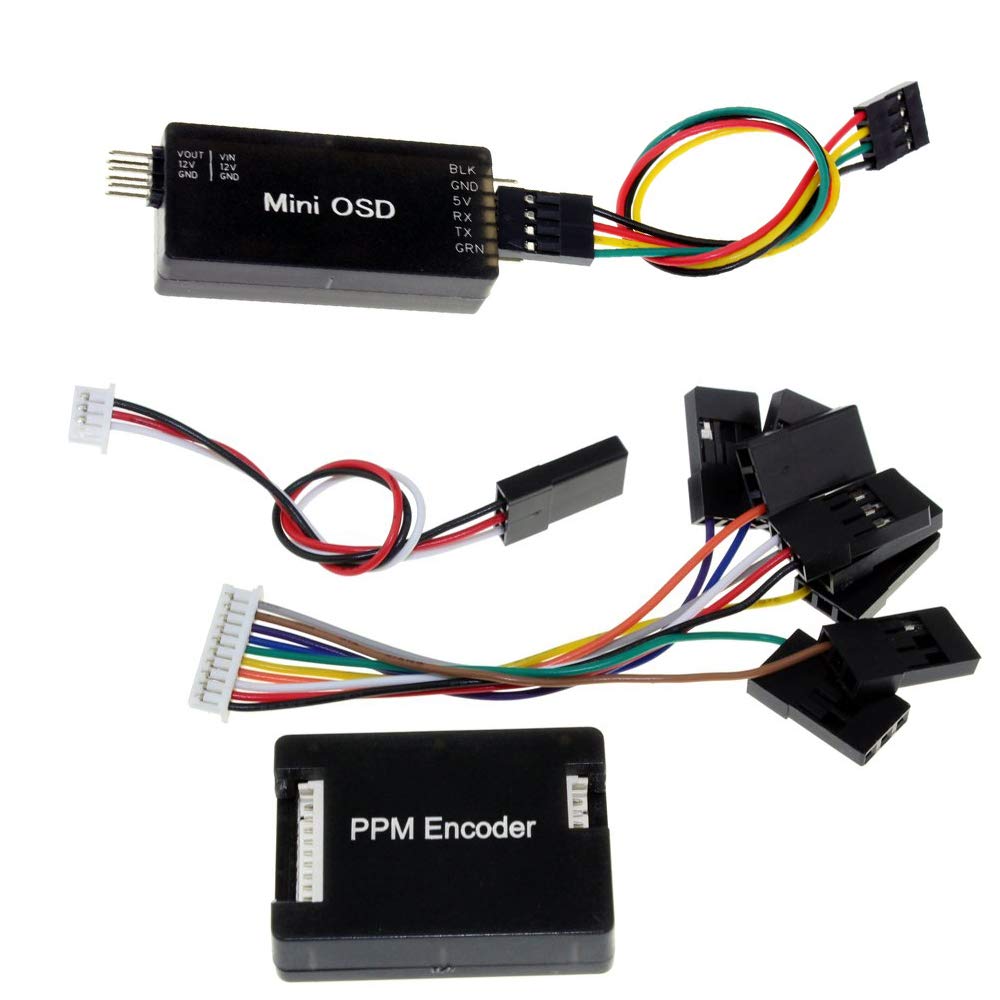

• 1 x PPM Module

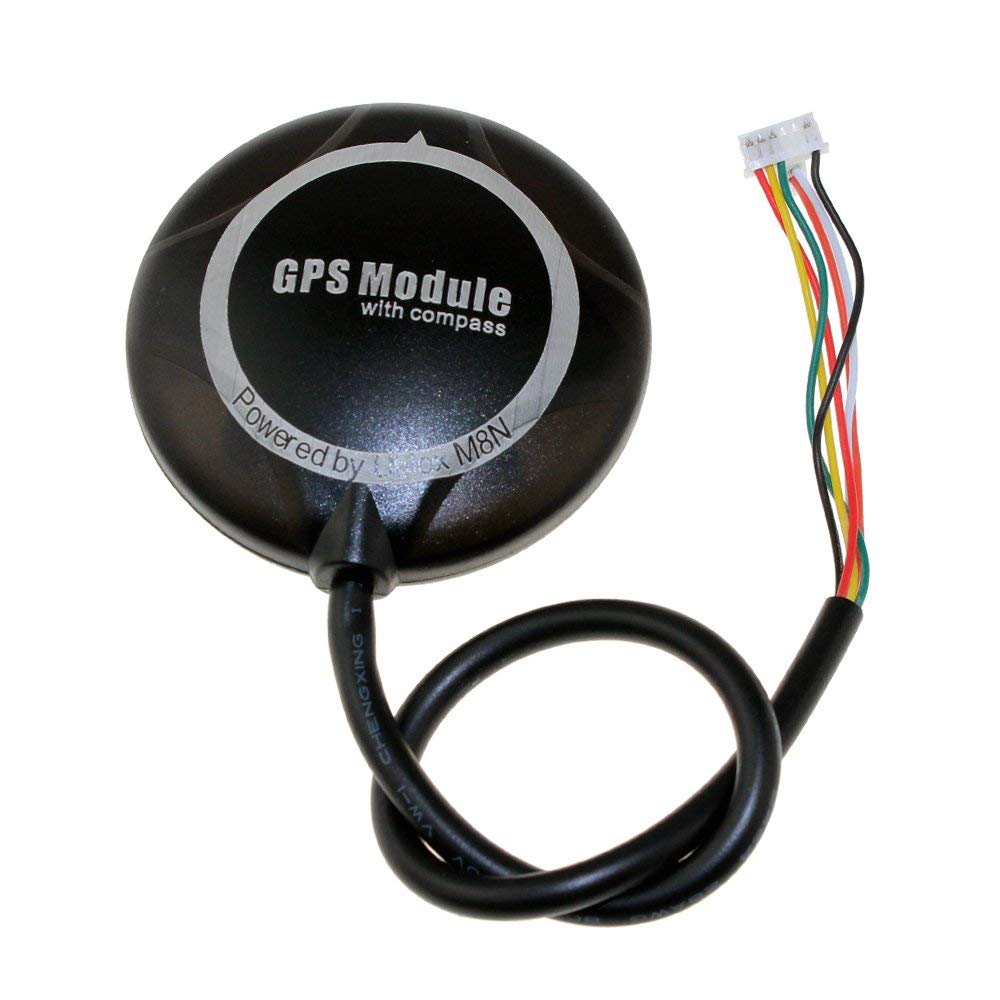

• 1 x NEO-M8N GPS
• 1 x Power Module (T-plug type)
• 1 x I2C Splitter Expand Board

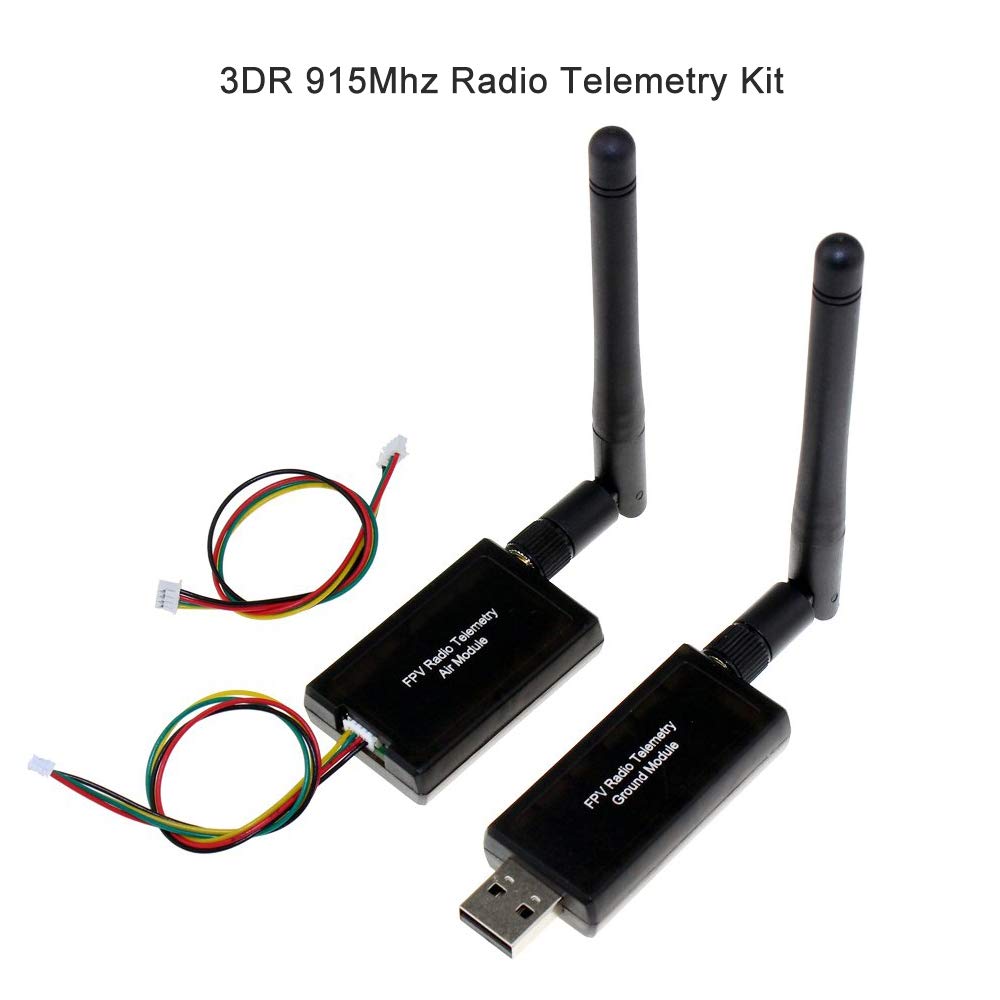

• 1 x 3DR Radio Data Transmission Module (915MHz)
• 1 x Mini USB Cable
• 1 x Mini OSD
• 1 x GPS Bracket
• 1 x SD Card Adapter
• 1 x Buzzer
