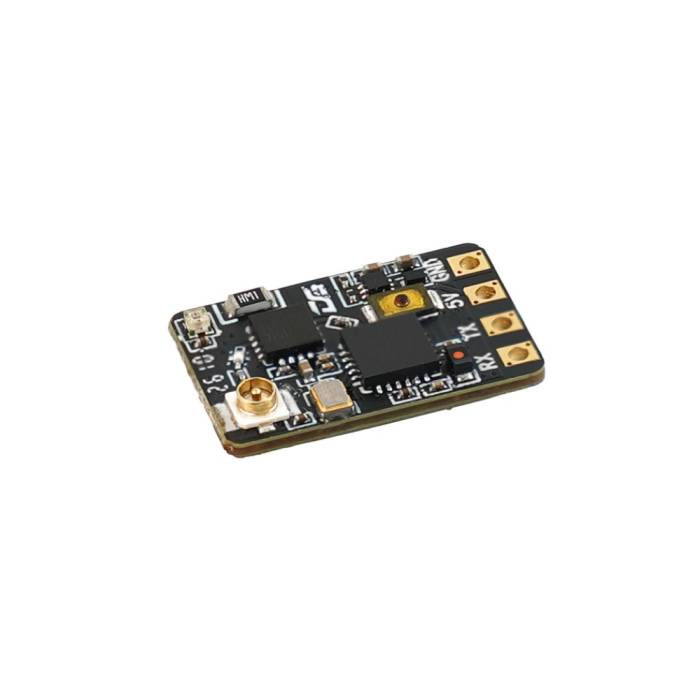

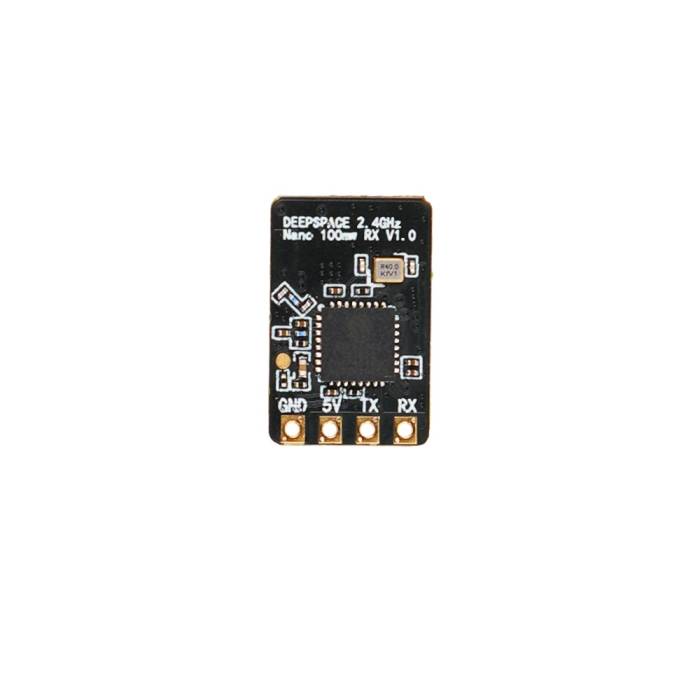

DeepSpace Nano ELRS 2.4GHz 100mW Receiver + 80mm Antenna

About this product

The DeepSpace ELRS Nano 2.4GHz 100mW Receiver is a high-performance receiver built on the ExpressLRS platform, offering long-range control with ultra-low latency for FPV drones. Its integrated Power Amplifier delivers strong, stable signal transmission, while a temperature-compensated oscillator ensures consistent performance across varying conditions. Designed for reliability and responsiveness, this receiver is ideal for freestyle, racing, and long-range FPV applications.

Features

• ESP32 chip
• Built-in TCXO
• Compact and lightweight design
• High sensitivity

Specifications

• Model: DeepSpace ELRS Nano 2.4GHz
• RF Frequency: 2.4GHz ISM
• Chipset: ESP32C3, SX1281
• Crystal Oscillator: TCXO
• Telemetry Power: 100mW
• Protocol: CRSF
• Refresh Rate: 50Hz – 1000Hz
• Input Voltage: 5V
• Dimensions: 17mm x 11mm x 3mm
• Weight: 0.8g (without antenna)

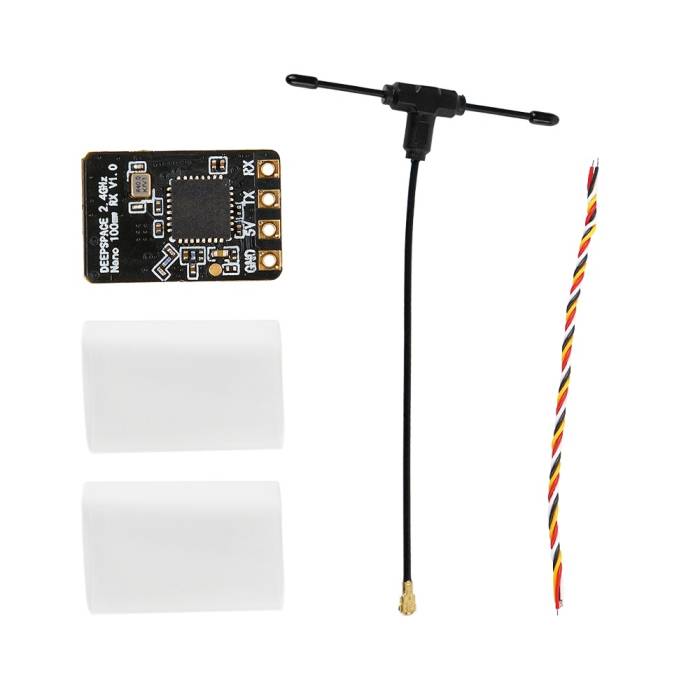

Includes

• 1x DeepSpace Nano ELRS 2.4GHz 100mW Receiver
• 1x Twisted Connector Cable
• 1x 80mm Antenna
• 2x Heat Shrink Tubing

The DeepSpace ELRS Nano 2.4GHz 100mW Receiver is a high-performance receiver built on the ExpressLRS platform, offering long-range control with ultra-low latency for FPV drones.
