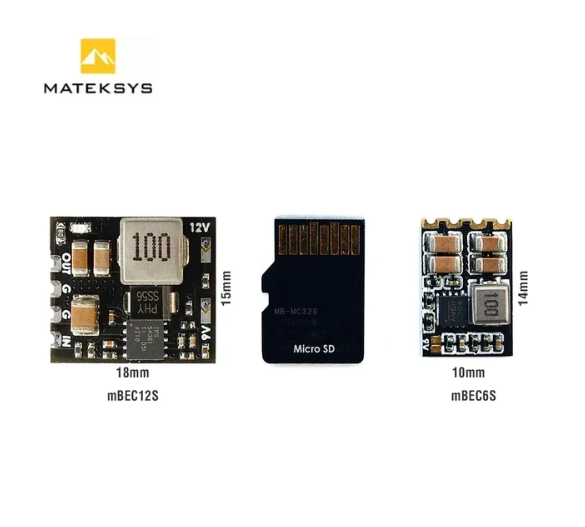

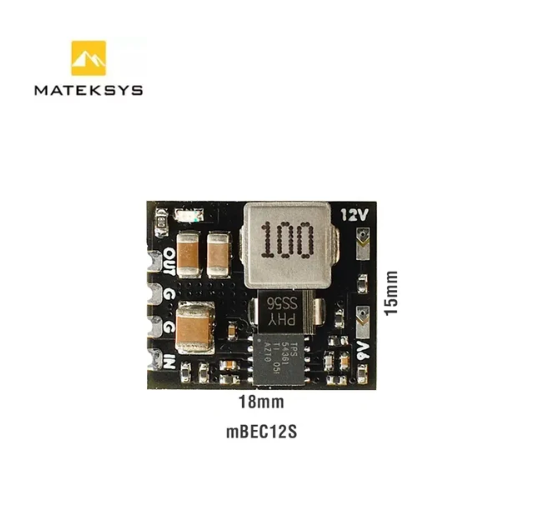

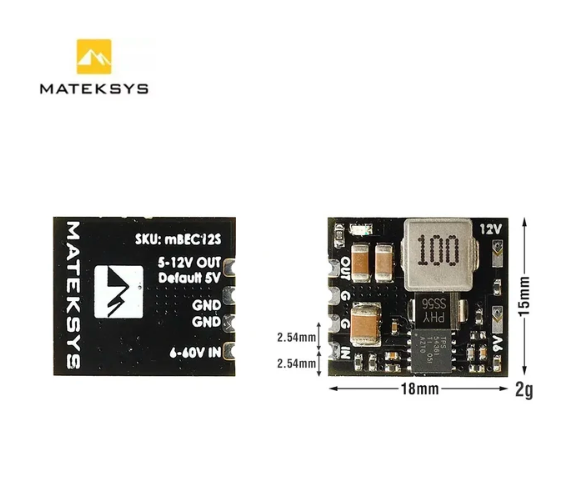

MATEK MICRO BEC 6-60V TO 5V/9V/12V-ADJ MBEC12S Step-Down Regulator Module

Original Genuine Product MBEC12S MATEKSYS MICRO BEC 6-60V TO 5V/9V/12V-ADJ Step-Down Regulator Module For RC Model Airplane Helicopter FPV Racing Drone

• Wide 6V to 60V Operating Input Range
• Start-up Voltage >=6.7V
• VOut 5V, 9V or 12V Adj. Default is 5V.
• Maximum Duty Cycle: 100%,  when input voltage< setting value, Regulator output voltage = Input voltage

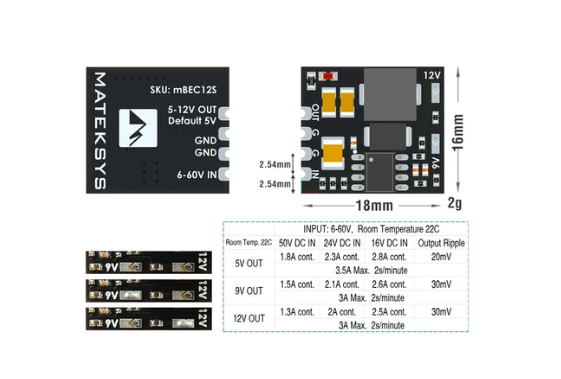

• Continuous load current: Depends on input voltage and heat dissipation.
• Standby current: <5mA
• OCP Protection and Hiccup
• Thermal Shutdown
• Output Short-circuit tolerant (3 seconds/minute)
• No protection for reversed input polarity
• Pins distance: 2.54mm

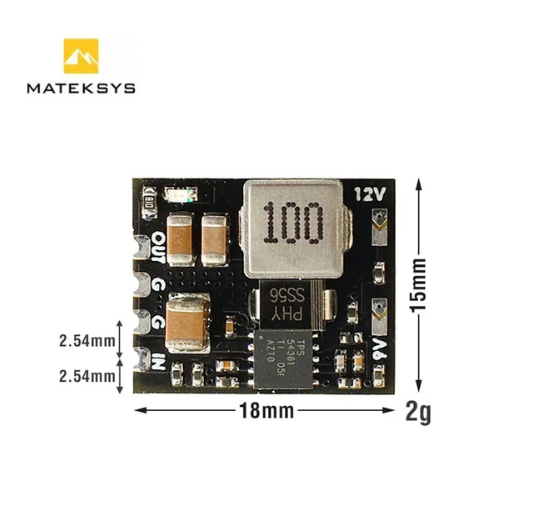

• Size & Weight: 18×15(16)x4.5mm, 2g
• Packing: 1pc/package
•

• Due to shortage of chips, the voltage regulator chip has been replaced with SOP-8 package.
• PCB 1mm wider.
• Identical performance as previous version.
• For details, please refer to the off
