GEPRC TAKER F722 BLS 65A V2 Flying Tower - Plug and Play FPV Drone Accessories | Mechfpv of Shenzhen

description:

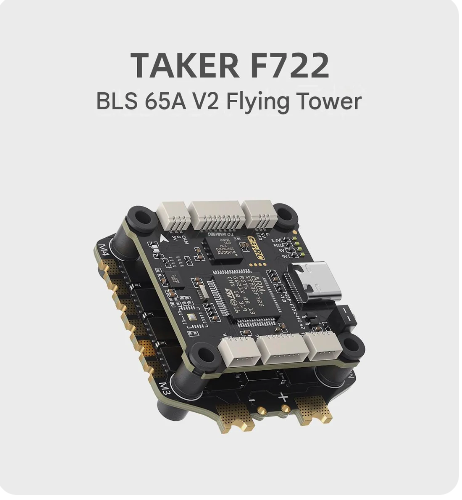

The GEPRC TAKER F722 BLS 65A V2 is a plug‑and‑play FPV flight stack combining GEP‑F722‑HD V2 flight controller and TAKER H65‑8S‑BLS 65A 4‑in‑1 ESC, designed for freestyle, long‑range and cinematic FPV drone builds.

Flight controller is built around STM32F722 MCU with high‑performance SPI‑ICM42688‑P gyroscope, onboard 16MB blackbox flash memory, AT7456E BetaFlight OSD chip and integrated barometer. Dual independent BEC outputs 5V@3A and [email protected] power peripheral modules; 5×UART ports and Type‑C USB interface bring abundant expandability. Integrated LC power filter suppresses power‑supply noise, supports direct plug‑in connection for DJI Air Unit digital video unit.

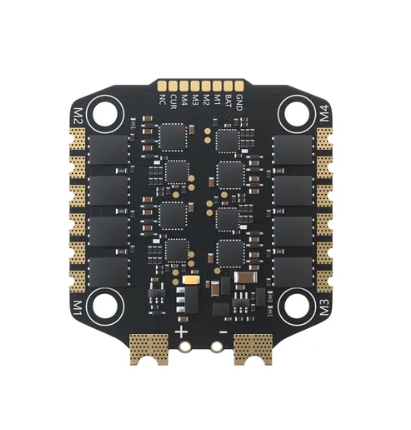

Matching 4‑in‑1 BLHeli‑S ESC supports 3‑8S wide‑voltage LiPo input, 65A continuous /70A (5s burst) current rating, fully compatible with DShot150/300/600 protocols with precise current sensing. Both FC and ESC adopt standard 30.5×30.5mm mounting hole pattern with silicone shock‑absorbing rings to stabilize gyro performance. Complete hardware kit comes with required cables, screws and dampers for quick assembly out‑of‑box.

brand: GEPRC

sku: GEP‑TAKER‑F722‑BLS65A‑V2

offers:

• STM32F722 flight controller, SPI ICM42688‑P high‑precision IMU, onboard barometer & 16MB blackbox storage

• Dual BEC: 5V‑3A, 9V‑2.5A; 5 UART ports, Type‑C USB, AT7456E OSD, integrated LC power filter

• Direct plug‑in support for DJI Air Unit digital FPV system

• TAKER H65‑8S‑BLS 65A 4‑in‑1 ESC: 3‑8S LiPo, 65A continuous /70A 5s burst current, DShot 150/300/600

• 30.5×30.5mm standard mounting footprint, silicone shock‑absorbing dampers included

• Full accessory pack: cables, capacitor, mounting screws & nuts for plug‑and‑play installation

• Ideal for 5‑7 inch freestyle, long‑range and heavy‑payload FPV multirotors

availability: In Stock, Fast Shipping
