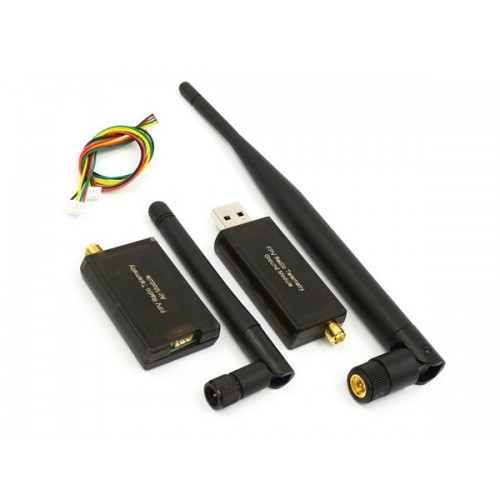

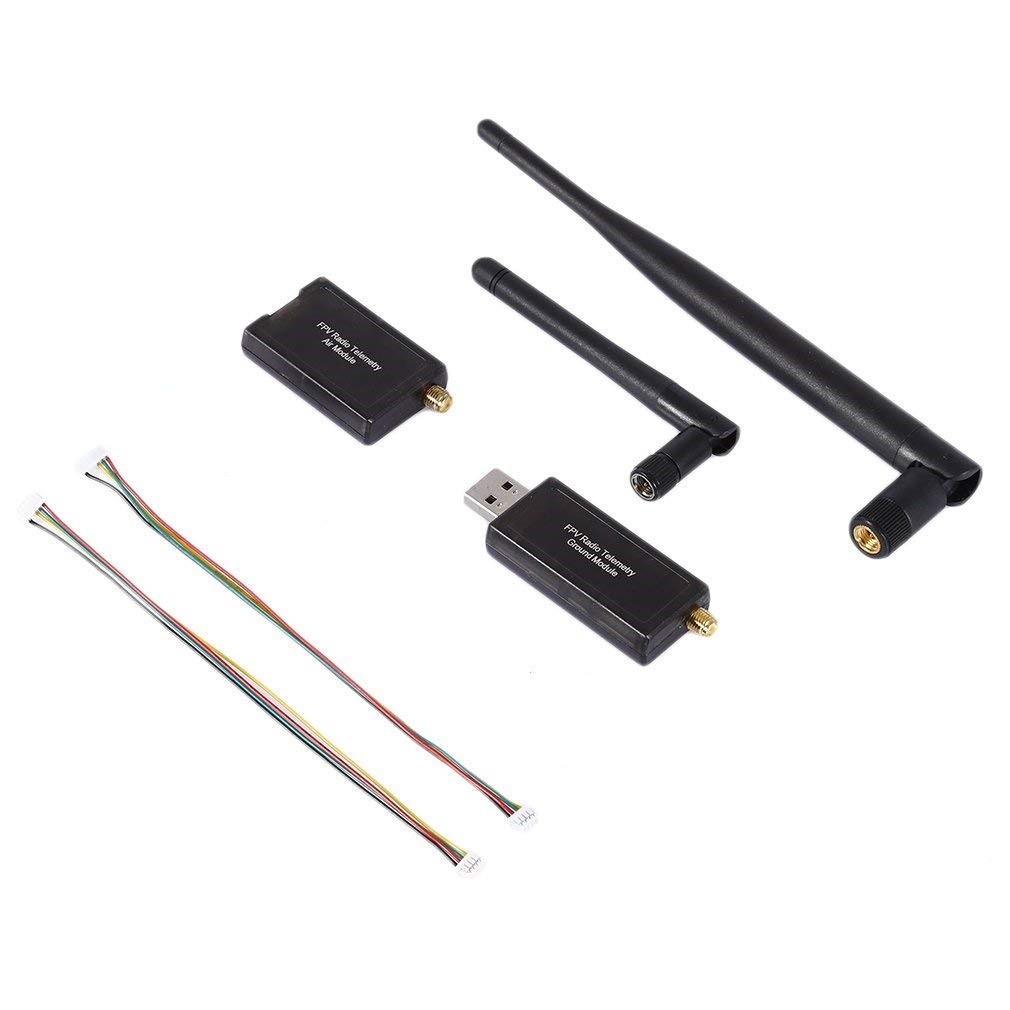

433Mhz 100mW Telemetry Kit

The Telemetry Kit is compatible with Ardupilot or Pixhawk-based systems and allows you to easily add a two-way telemetry connection between your drone and ground station.

• Very small size & Lightweight (under 4 grams without antenna)
• Transparent serial link
• MAVLink protocol framing and status reporting
• Frequency hopping spread spectrum (FHSS)
• Adaptive time division multiplexing (TDM)
• Support for LBT and AFA
• Configurable duty cycle
• Interchangeable air and ground modules
• Micro-USB port
• 6-position DF13 connector
• 100 mW maximum output power (adjustable)
• Based on HopeRF’s HM-TRP module
• RP-SMA connector
• 2-way full-duplex communication through adaptive TDM
• UART interface
• Transparent serial link
• MAVLink protocol framing
• Frequency Hopping Spread Spectrum (FHSS)
• Configurable duty cycle
• Error correction corrects up to 25% of bit errors
