mechfpv Long Range FPV Combo: 2.5W VTX + High Res Camera (64CH)

Description:

2.5W 5.8G High Power VTX & Camera Combo (1500TVL / 1800TVL Options)

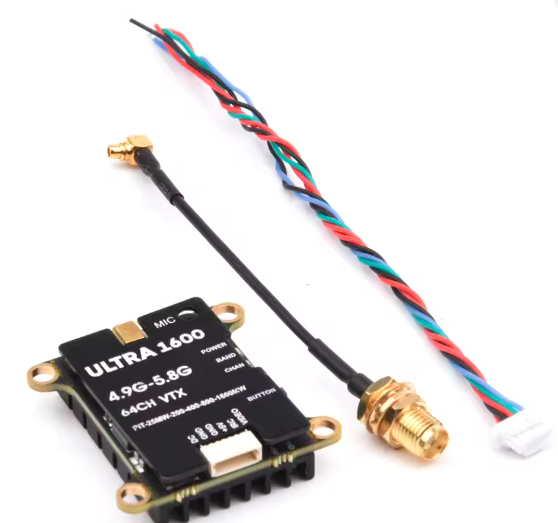

Model: Ultra1600 VTX 4.9G-5.8G 1.6W

Input voltage: DC 7-36V(2-8S Battery)

Output: 5V@600mA(Power 5V to camera)

Input impedance: 75Ω

Protocol: IRC Tramp

Antenna connector: MMCX connector

Cable connector: GH1.25-6P connector

Output power: 25mW/

400mW/800mW/1600mW/Pit mode

Frequency tables: 64 CH

Video format: PAL / NTSC

Microphone: Built in microphone

Size: 36.5mmx36.5mmx12mm

Weight: 15g(without cable)

Mounting holes: 30.5mmX30.5mm(M3)

Features

1. 1.6W super-power ,suitable for Long Range flight with good stability.

2. Six power levels: 25mW/

400mW/800mW/1600mW/Pit mode .

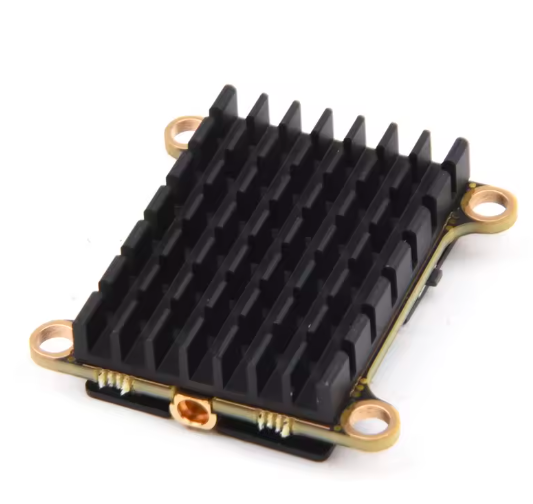

3. Two-layer board cooling structure,separate power BEC and main-board,reducing

and shielding from the insinal interference.

4. Temperature control protection function that can prevent high temperature

burning.

5. Wide voltage input, supports 7V-36V voltage input.

6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.

7. VTX built in microphone,real-time return of Drone's sounds.

8. Has 3 regional frequency tables to meet the needs of various regions.

9. One function buttons, three indicator lights, easy to operate.

10. Mounting holes is 30.5mmx30.5mm.
