mechfpv 1.2GHz 1000mW Long Range FPV System (VTX/VRX Combo)

Description:

1.2GHz 1W FPV Video Transmitter & Receiver Kit (VTX + VRX)

FPV 1.2GHz 1.2G 1W Transmitter VTX & Receiver VRX TX Video Transmitter Transmitting Module For RC FPV Long Range Racing Drone

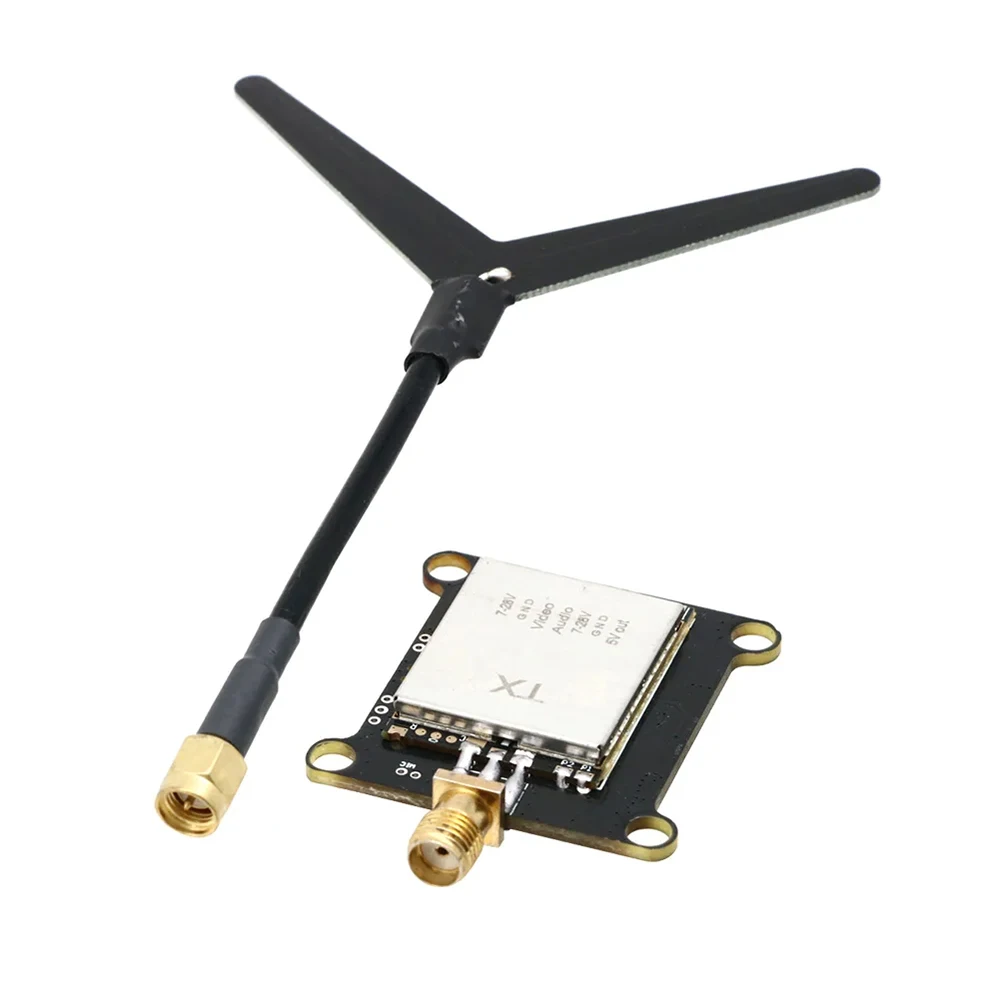

1.2G 1W VTX:

Video Input format: CVBS PAL/ NTSC

Frequency band: 1060-1380MHz

Channel Frequency: CH5-1240 CH2-1120 CH3-1160 CH4-1200 CH6-1258 CH7-1280 CH8-1320 CH9-1360

Transmit Power: 14dB (25mW) 32dB(1600mW)

Input Voltage: DC 7-36V (3-6S Lipo)

Power Consumption: 400mA (±20mA)@12V

Operating Temp.: -10℃-+60℃

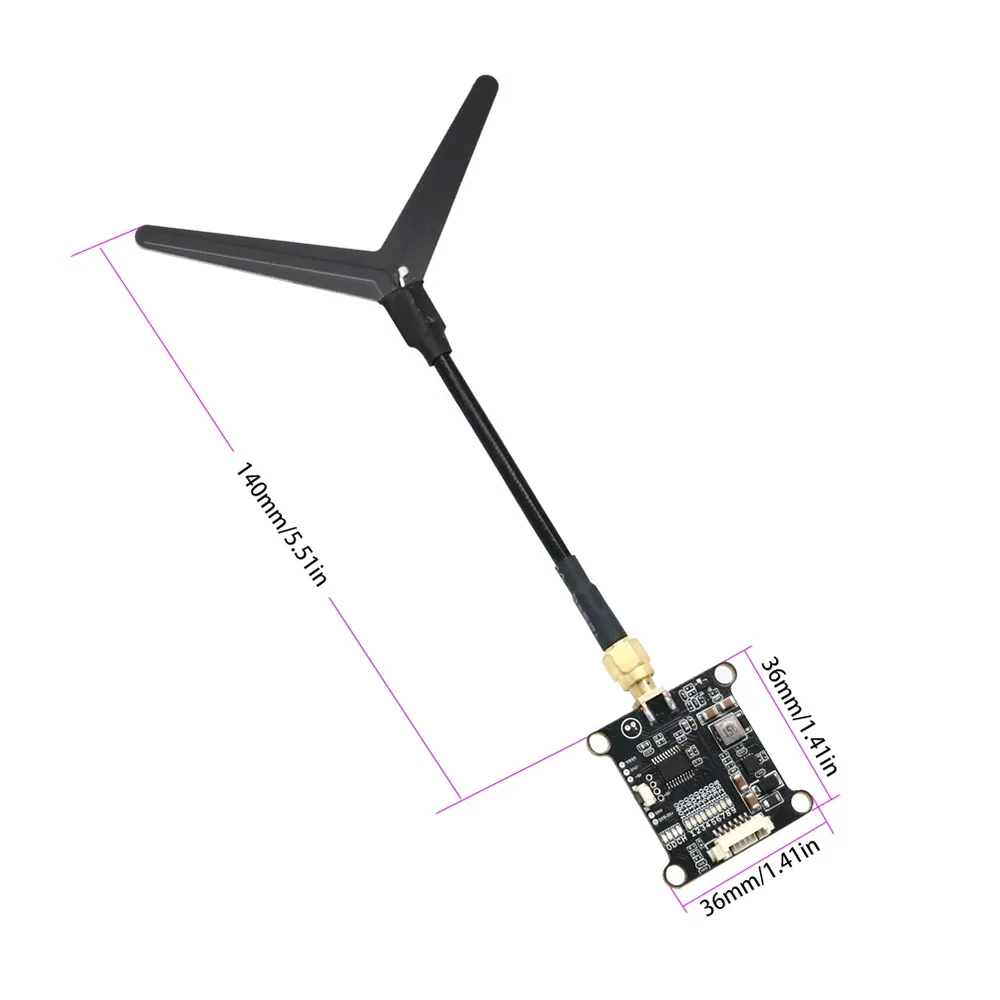

Dimension: 36mmx22mmx7mm

Weight: 10g (VTX)
