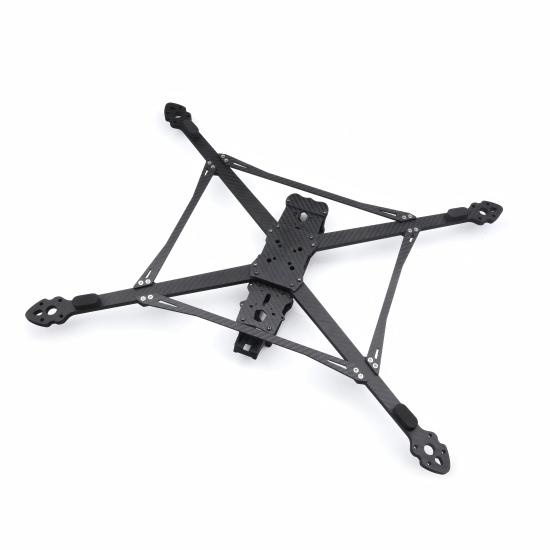

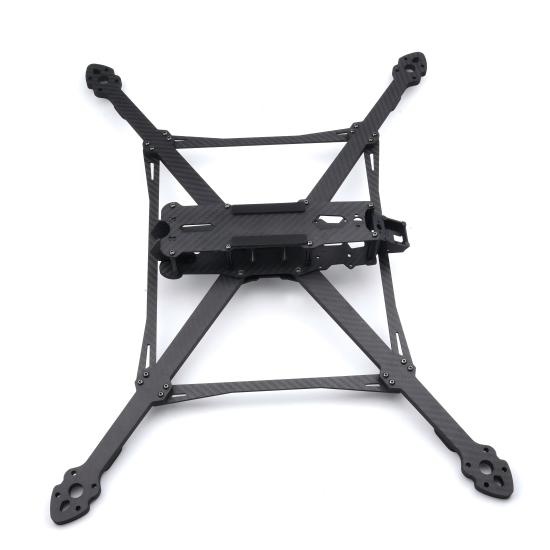

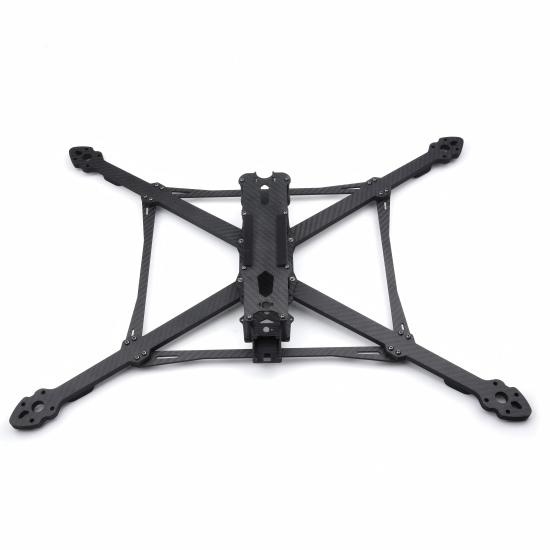

MARK4 V3 Pro 15" 680mm Long Range Frame Kit (T8 Carbon, 8mm Arms)

Mark4 V3 Pro 15Inch 680mm Carbon Fiber Frame

Wheelbase: 680mm

Upper plate Thickness: 2.0mm

Bottom plate Thickness: 3.0mm

Thickness of lower fixed plate: 3.0mm

Thickness of camera side plate: 2.5mm

Front lip plate Thickness: 2.5mm

Rear lip plate Thickness: 2.5mm

Surrounding reinforcement Thickness: 3.0mm

Arm Thickness: 8.0mm

Weight: 590g

Camera mounting spacing:19MM

Flight control mounting hole spacing: 20*20MM / 30.5*30.5MM

VTX mounting hole spacing: 20*20MM / 30.5*30.5MM

Motor mounting hole spacing: 21*21MM

Motor screw hole diameter: 4MM (please make sure your motor hole is 4mm)

Can be adapted to 15inch propeller
