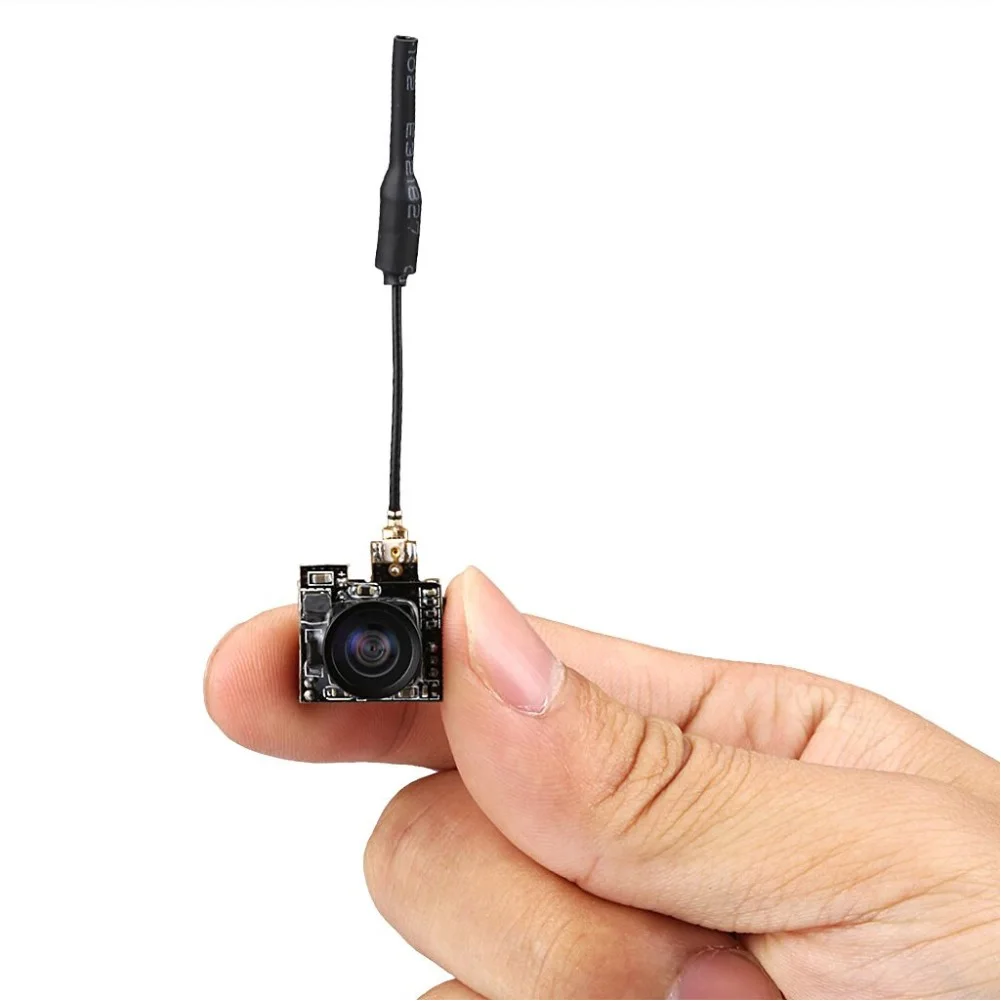

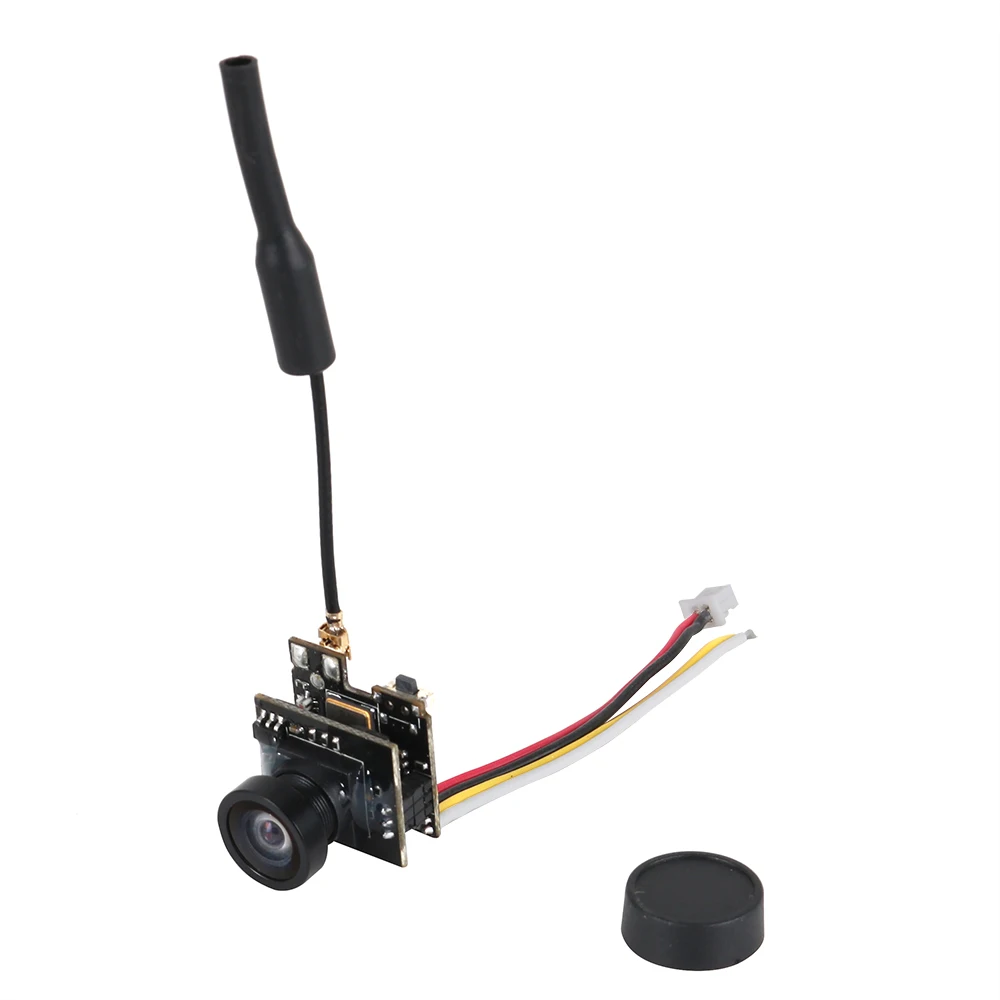

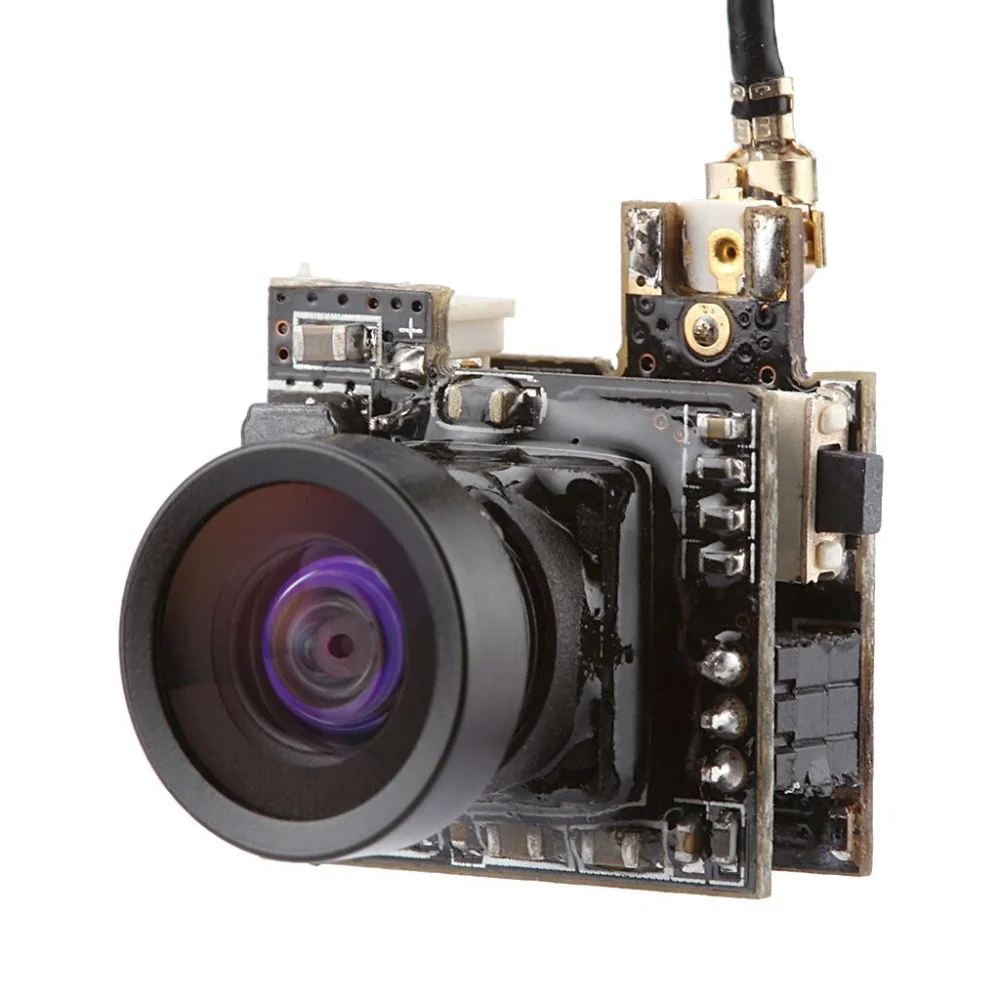

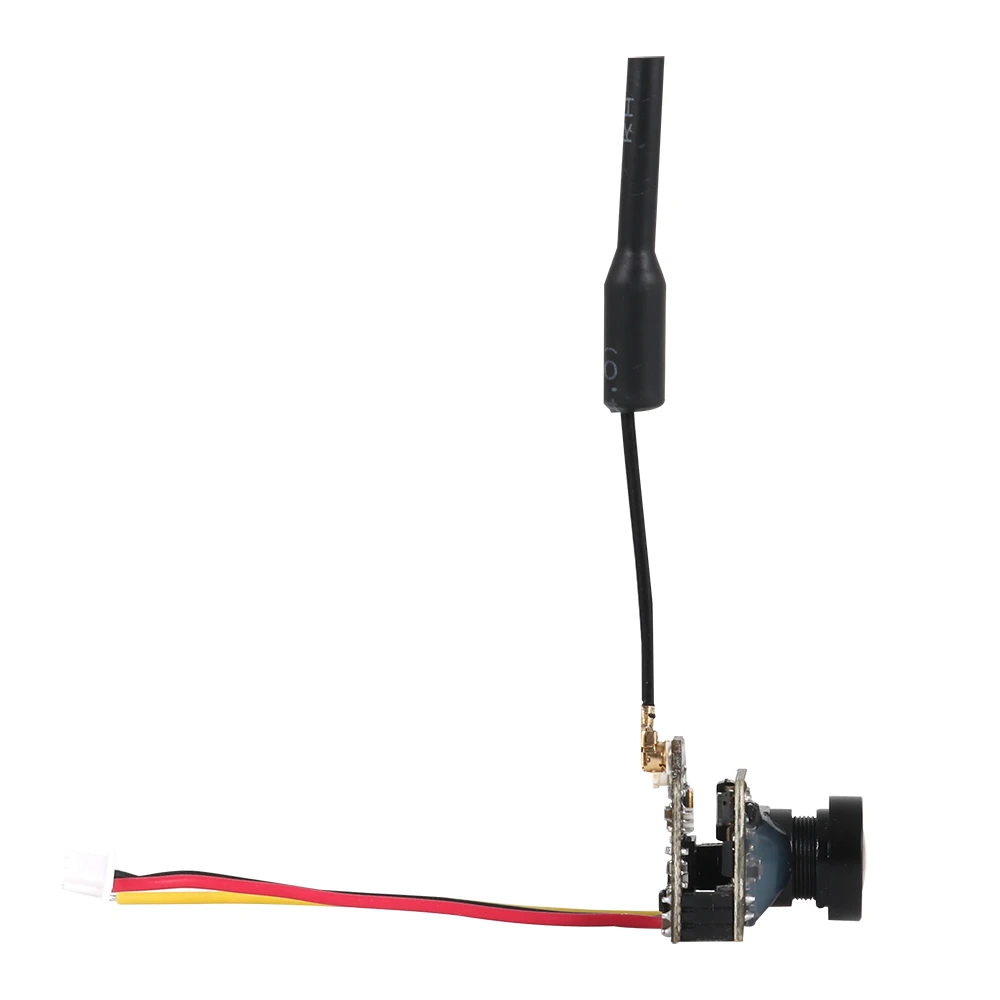

LST-S2 800TVL AIO Micro FPV Camera (25mW) for Tiny Whoop

FPV Camera

Sensor: 1/4 "CMOS

Lens: M8 800TVL Lens

Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective

Format: NTSC / PAL (switchable)

Power consumption: 380mA @ 3 · 7V

Power: 3.6-5.5V

Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

Video Transmitter

Support video format: NTSC / PAL

Output Impedance: 75 Ohm

Output signal strength: 23 ~ 24dBm

Output Power: 25mW

Wireless Channel: 40CH

Antenna: RHCP circular polarization clover leaf antenna

Operating voltage: 3.6V ~ 5.5V

Current: 100mA

Audio carrier: 6.5MHz

Button function

Short press (Apr. 1 sec or less): Change channels 1-8

Long press (More than 1.5 sec): Change bands A-B-E-F-R

Long + press (More than 3 sec): Change NTSC/PAL system

NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Body

Weight: 3.6g

Size: 18x16x16mm (without antenna)

Feature:

AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight

150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective

Five bands 40 channels with Race band

Package Included:

1 X S2 AIO FPV Camera

1 X wiring harness

1 X User Manual
