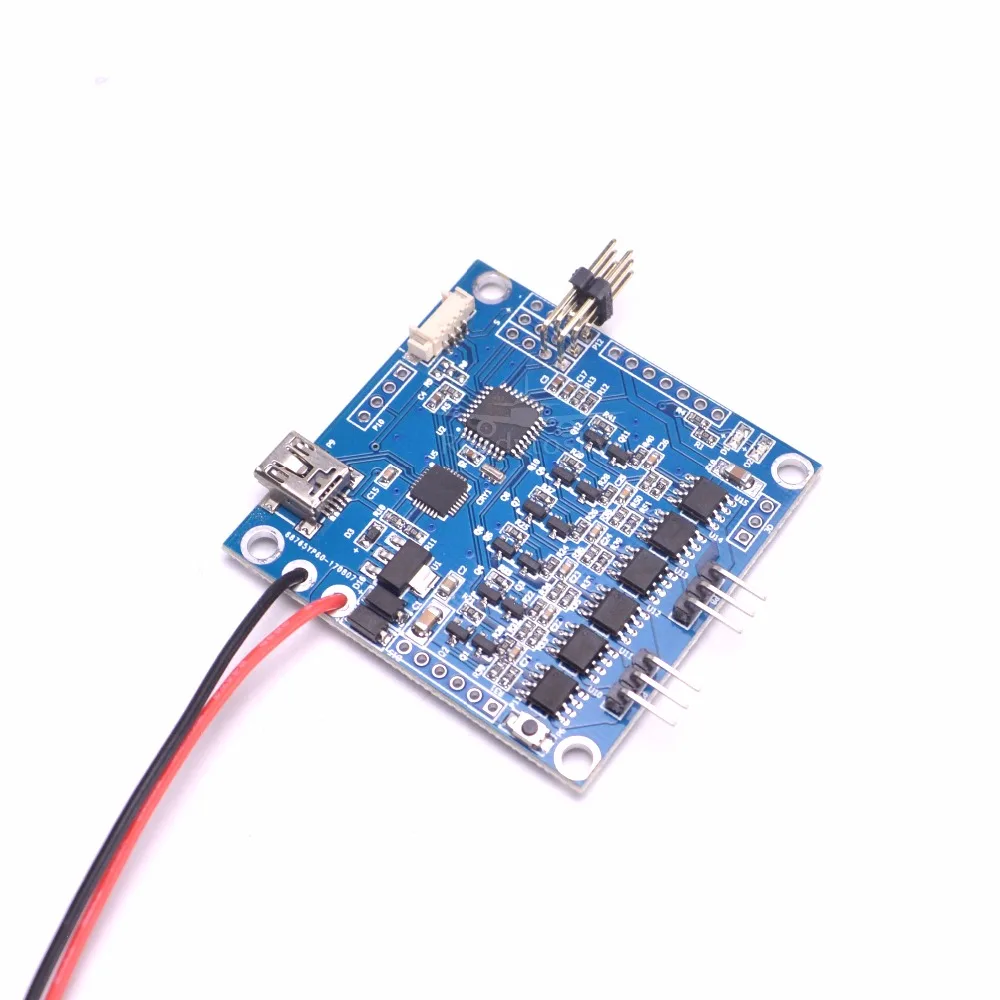

mechfpv BGC 3.12 MOS 2-Axis Brushless Gimbal Controller (High Current)

Description:

BGC 3.12 2-Axis Gimbal Board (Alexmos 2.2b2 Firmware)

The use of MOS tube instead of L6234D drive motor, the peak current 10A (L6234D peak 5A), can work long hours in the 5A (recommended heat sink)

Gimbal voltage 7.4-16.8V , 3S power supply

Smallest sensor board, lighter, more compact

Gives the parameter to adjust the software, facilitates your own customization

Specification:

Product Name: BGC 3.1 high current 2-axis gimbal control board

Manufacturers No.: BGC30P

Product appearance: 5 x 5cm

Drive: MOS

Maximum operating current: 10A

Continuous operating current: 5A

Plug type: JST / HX

Hardware version: BGC3.1

Firmware version: BGC2.2

Supports motor: 2x - 8x series ( for GoPro to RED digital cinema camera )

Net weight: 17g (with sensor and cable)

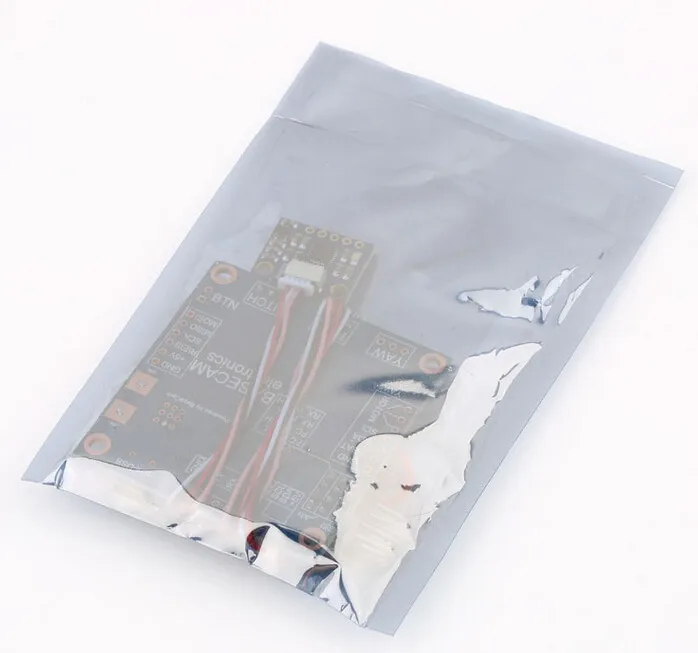

Package Included:

1 x Gimbal control board

1 x Sensor

1 x Connecting cable

Tips:

This brushless PTZ control board is suitable for friends with strong learning ability. The debugging is more complicated. We do not provide technical support!

1, Source code:

http://code.google.com/p/brushless-gimbal/downloads/detail?name=Brushless%20Gimbal%2050x50mm%20V3.0.1.zip&can=2&q=

2. Debugging software and firmware download:

http://code.google.com/p/brushless-gimbal/downloads/list

3. USB computer driver download:

http://www.ftdichip.com/Drivers/VCP.htm

4. For details, please visit the official website:

http://code.google.com/p/brushless-gimbal

Notes:

Gimbal control board kit only, others not included.

There may be some deviation due to manual measurement.

The colors deviation might differ due to different monitor settings, please kindly understand.
