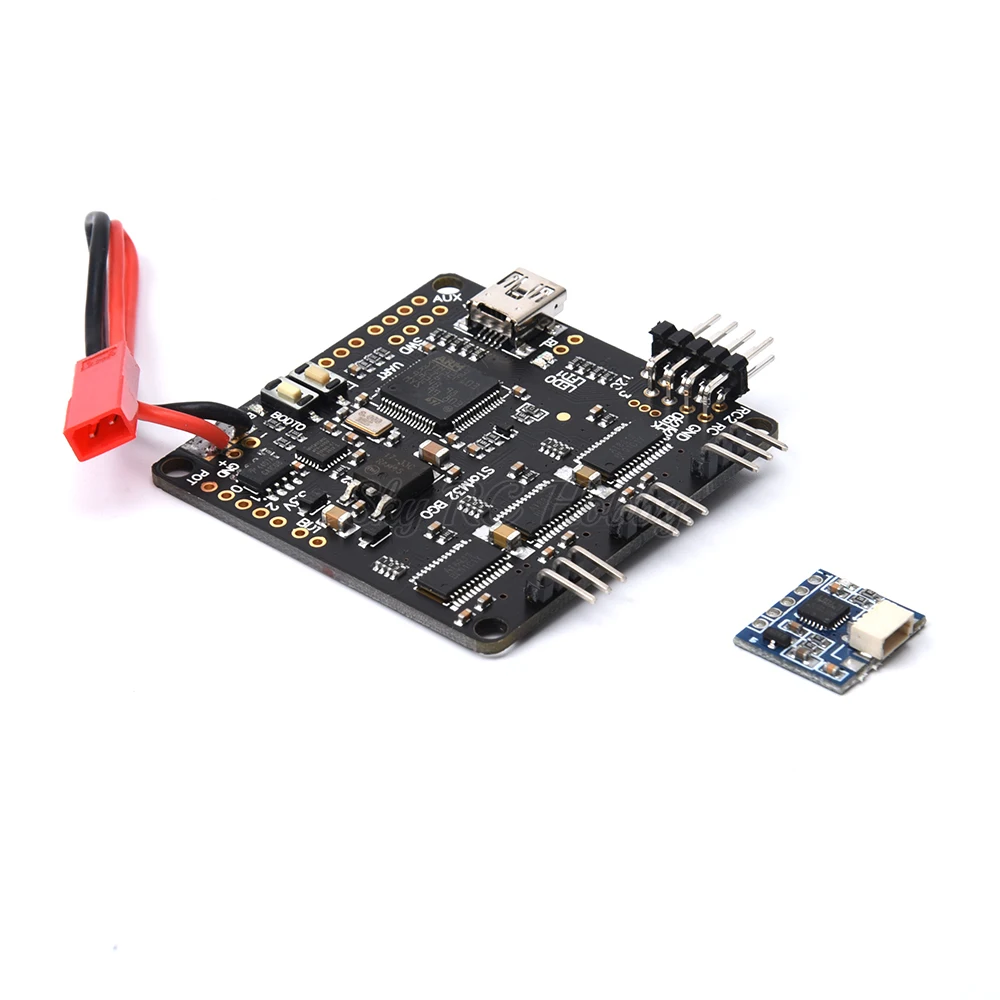

mechfpv Storm32 BGC 32-Bit 3-Axis Controller V1.31 (STM32 Chip)

-M0T0: Connection Pitch(Pitch) Motor

-M0T1: Connection Roll(Roll) Motor

-M0T2: Connection YAW(Direction) Motor

-RC Port: Remont control port.during normal operation,RCO-2 can be accessed by the 3-way PWM singal as a control used when updating the firmware RCO=UAER-RX RC1=UART-TX,SPEKRUM,S-BUS signal is connected RC-O

-RC2 Port: RC20-3 can connect up to four-way Pwm signal as a control use.

-I2C Port: Then the camera's sensor

-I2C Port #2: I2C board on the back of 2# connect external sensors using alternative imu on the motherboard.

-IR Port: Contact infrared light-emitting diode,you can remote control the camera at sony.

-USB Port: 0.46 firmare can be used later usb transfer parameters directly connected to the computer.

- Processor: GD32F103RC at 72Mhz

- Motor driver: DRV8313 with short circuit, overheat protection

- Onboard gyro and acceleration sensor MPU6050

- IR LED Interface

- Futaba S-BUS

- Spektrum satellite port

- 7CH PWM/Sum-PPM input/output

- Each axis could connect analog joystick

- With I2C port, could use external 6050 to replace onboard sensor

- 3* AUX port

Specifications:

- Power supply: 9-18V(3-4S)

- Drive current: Max.1.5A

- Dimension: 5-5cm, M3 screw hole, 45mm pitch

- Weight: 10g
